Description

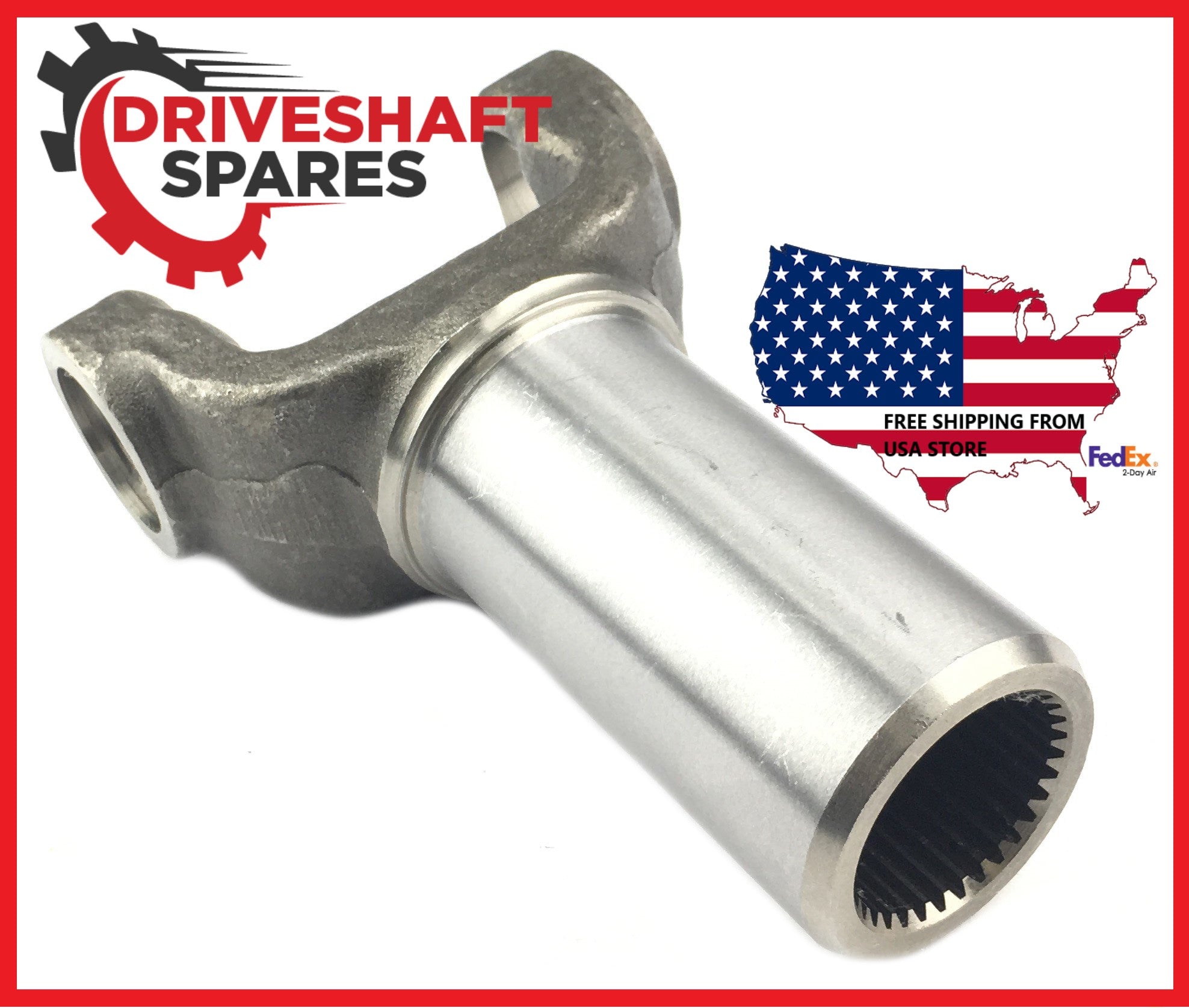

GM Turbo TH400 Trans Slip Yoke Muncie M21 T10 1350 3-3-2431X 31/32 (master spline) Spline count FULL SPLINE
You are buying a High-Quality Aftermarket Transmission Slip Yoke and Universal Joint that fits the following transmission cases:
- TH / Turbo Hydromatic / Turbo 400
- 4l80E & 4L85E
- Muncie M21 & M22
- Borg Warner Super T10
Transmission Slip Yoke Specifications
U-Joint Series
1350
Spline Major Diameter
1.378″
Spline Count
32
Spline Type
31 Based on 32
Universal Joint Retaining Width
(E)
3.875″
Universal Joint Bearing Diameter
(D)
1.188″
Center line of Joint to End of Spline
(J)
5.500″
Ground Hub Diameter
(R)
1.885″
Counter bore Diameter
0.000″
Counter bore Depth
0.000″
Style
Snap Ring
- TH / Turbo Hydromatic / Turbo 400
- 4l80E & 4L85E
- Muncie M21 & M22
- Borg Warner Super T10
Transmission Slip Yoke Specifications
| U-Joint Series | 1350 | |
| Spline Major Diameter | 1.378″ | |
| Spline Count | 32 | |
| Spline Type | 31 Based on 32 | |
| Universal Joint Retaining Width | (E) | 3.875″ |
| Universal Joint Bearing Diameter | (D) | 1.188″ |
| Center line of Joint to End of Spline | (J) | 5.500″ |
| Ground Hub Diameter | (R) | 1.885″ |
| Counter bore Diameter | 0.000″ | |
| Counter bore Depth | 0.000″ | |
| Style | Snap Ring |
Compatible with SPICER Reference Numbers: 5-178X / 5-1350X / SPL30-1X
Neapco Parts Reference Numbers: N3-3-2431X
Spicer Reference Number: 3-3-2431X
Transmission Yokes
Series
1350 (1.188 x 3.625)
OD
1.885
Splines
31/32
Length
5.500
TH / Turbo Hydromatic / Turbo 400 4l80E & 4L85E Muncie M21 & M22 Borg Warner Super T10
Counter Bore.
| Transmission Yokes | |
| Series | 1350 (1.188 x 3.625) |
| OD | 1.885 |
| Splines | 31/32 |
| Length | 5.500 |
TH / Turbo Hydromatic / Turbo 400 4l80E & 4L85E Muncie M21 & M22 Borg Warner Super T10
Counter Bore.
