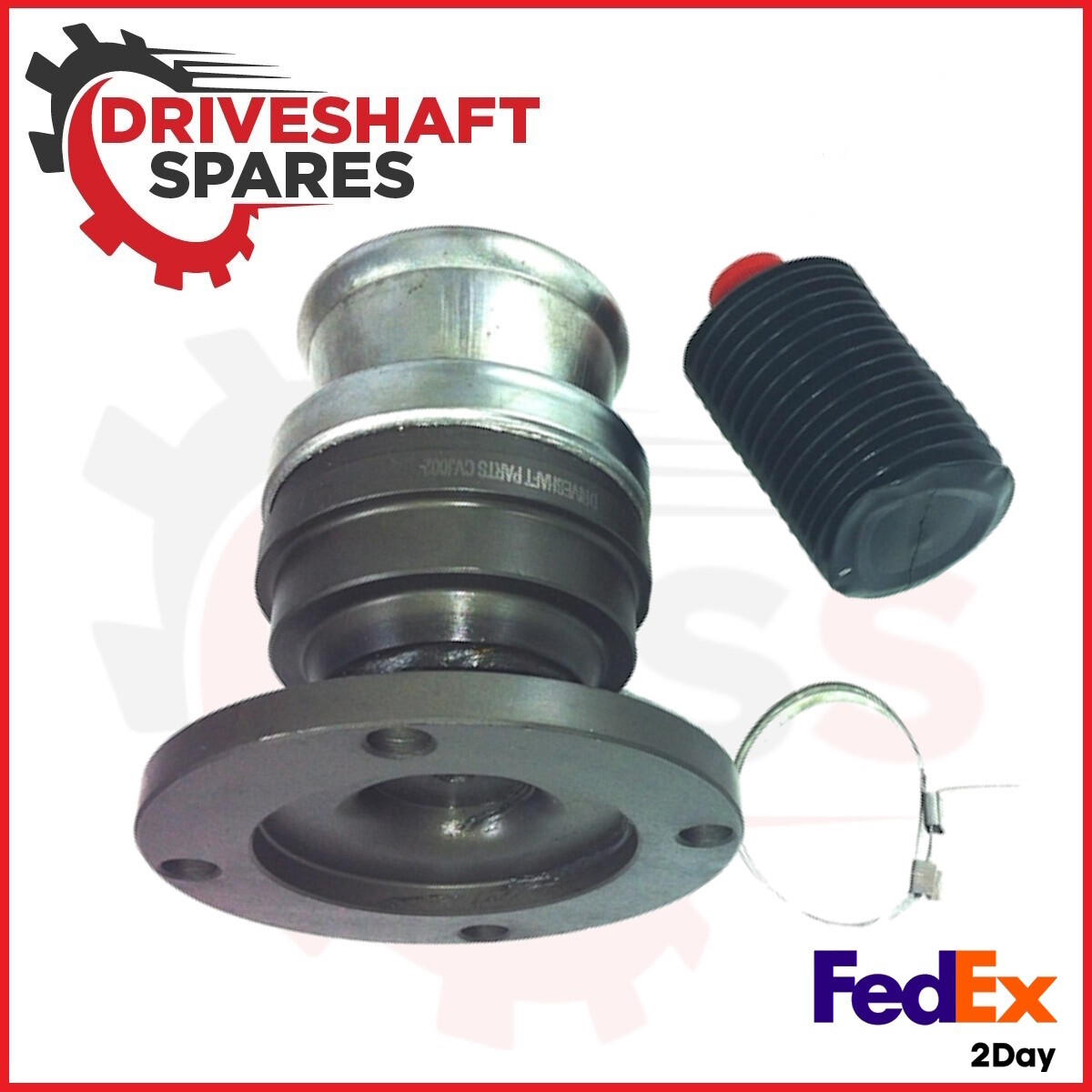

GMC Jimmy Safari Van 4X4 Front Driveshaft CV Joint Kit 932-103 – 26035527

Description

This CV Joint has a flange OD of 115mm (4.53”)

The hole PCD is 100mm (3.94”)

Hole dia 10.4mm (0.41”)

The pilot is female of 72.7mm (2.85”)

Year	Make	Model	Configuration	Positions	Application Notes


1998	Chevrolet	Astro	AWD	Front	Propeller Shaft
1998	GMC	Safari	AWD	Front	Propeller Shaft
1997	Chevrolet	Astro	AWD	Front	Propeller Shaft
1997	Chevrolet	Blazer	AWD	Front	Propeller Shaft
1997	GMC	Safari	AWD	Front	Propeller Shaft
1997	Oldsmobile	Bravada		Front	Propeller Shaft
1996	Chevrolet	Astro	AWD	Front	Propeller Shaft
1996	Chevrolet	Blazer	AWD	Front	Propeller Shaft
1996	GMC	Safari	AWD	Front	Propeller Shaft
1996	Oldsmobile	Bravada		Front	Propeller Shaft
1995	Chevrolet	Astro	AWD	Front	Propeller Shaft
1995	Chevrolet	Blazer	AWD	Front	Propeller Shaft
1995	GMC	Jimmy	AWD	Front	Propeller Shaft
1995	GMC	Safari	AWD	Front	Propeller Shaft
1994	Chevrolet	Astro	AWD	Front	Propeller Shaft
1994	GMC	Safari	AWD	Front	Propeller Shaft
1994	Oldsmobile	Bravada		Front	Propeller Shaft
1993	Chevrolet	Astro	AWD	Front	Propeller Shaft
1993	GMC	Safari	AWD	Front	Propeller Shaft
1993	Oldsmobile	Bravada		Front	Propeller Shaft
1992	Chevrolet	Astro	AWD	Front	Propeller Shaft
1992	GMC	Safari	AWD	Front	Propeller Shaft
1992	Oldsmobile	Bravada		Front	Propeller Shaft
1991	Oldsmobile	Bravada		Front	Propeller Shaft
1990	Pontiac	6000	AWD	Rear Driveshaft – CV at Transfer Case
1989	Pontiac	6000	AWD	Rear Driveshaft – CV at Transfer Case

OEM: 26035527, 932-103

Weight	4,5 kg
