Description

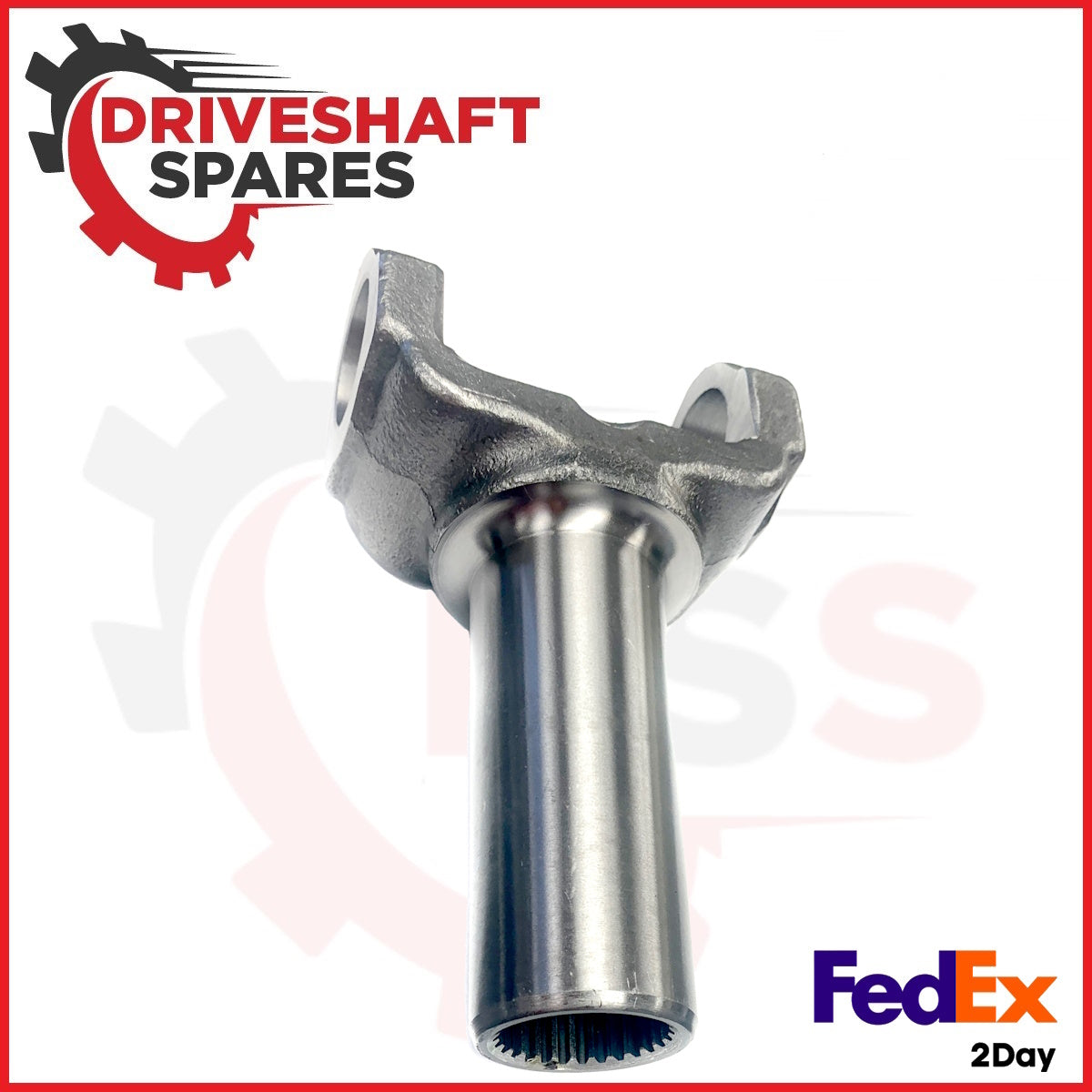

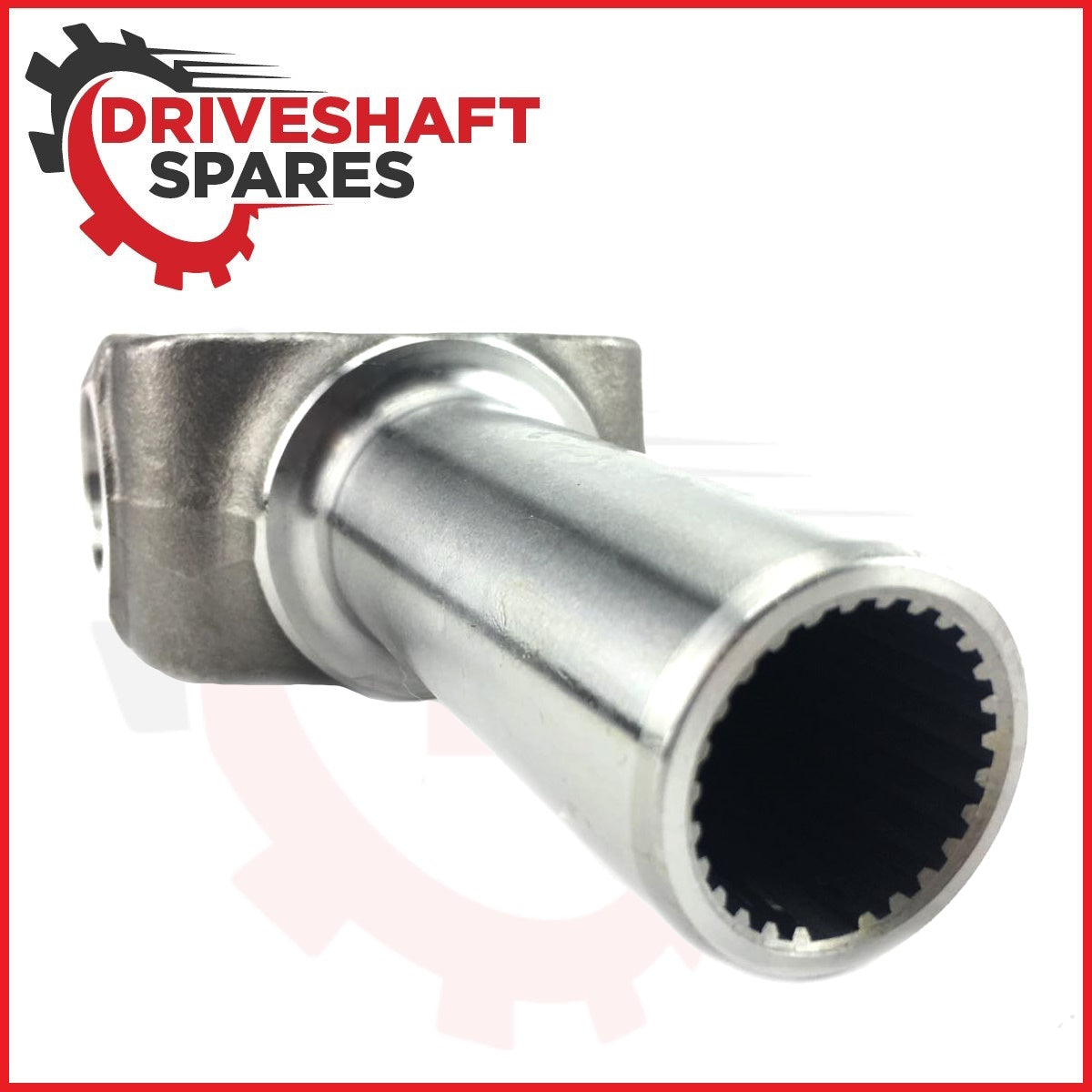

GM Turbo 350, TH350 / 700R4 Transmission Slip Yoke (534G) 3R SERIES INSIDE SNAP RINGS
- This Slip Yoke fits the Following GM Transmissions & Transfer Cases and has been in use since the 1960’s:
- TH / Turbo Hydromatic / Turbo 350
- 700R & 700R4
- 4L60 & 4L60E
- Powerglide
- Saginaw 3 Speed & Saginaw 4 Speed
- Muncie 4 Speed
- Borg Warner T-4, T-5 and T-10
| U-Joint Series | 3R | |
| Spline Major Diameter | 1.172 | |
| Spline Count | 27.000 | |
| Spline Type | 26 Based On 27 Spline | |
| Universal Joint Retaining Width | E | 2.563 |
| Universal Joint Bearing Diameter | D | 1.125 |
| Centerline of Joint to End of Spline | J | 5.469 |
| Ground Hub Diameter | R | 1.500 |
| Counterbore Diameter | 0.000 | |
| Counterbore Depth | 0.000 | |
| Style | Snap Ring | |
| Slip Yoke Plug part number (included) | ||
| Compatible U-Joint Kits | SPI-5-3147X,SPI-5-795X |
