Description

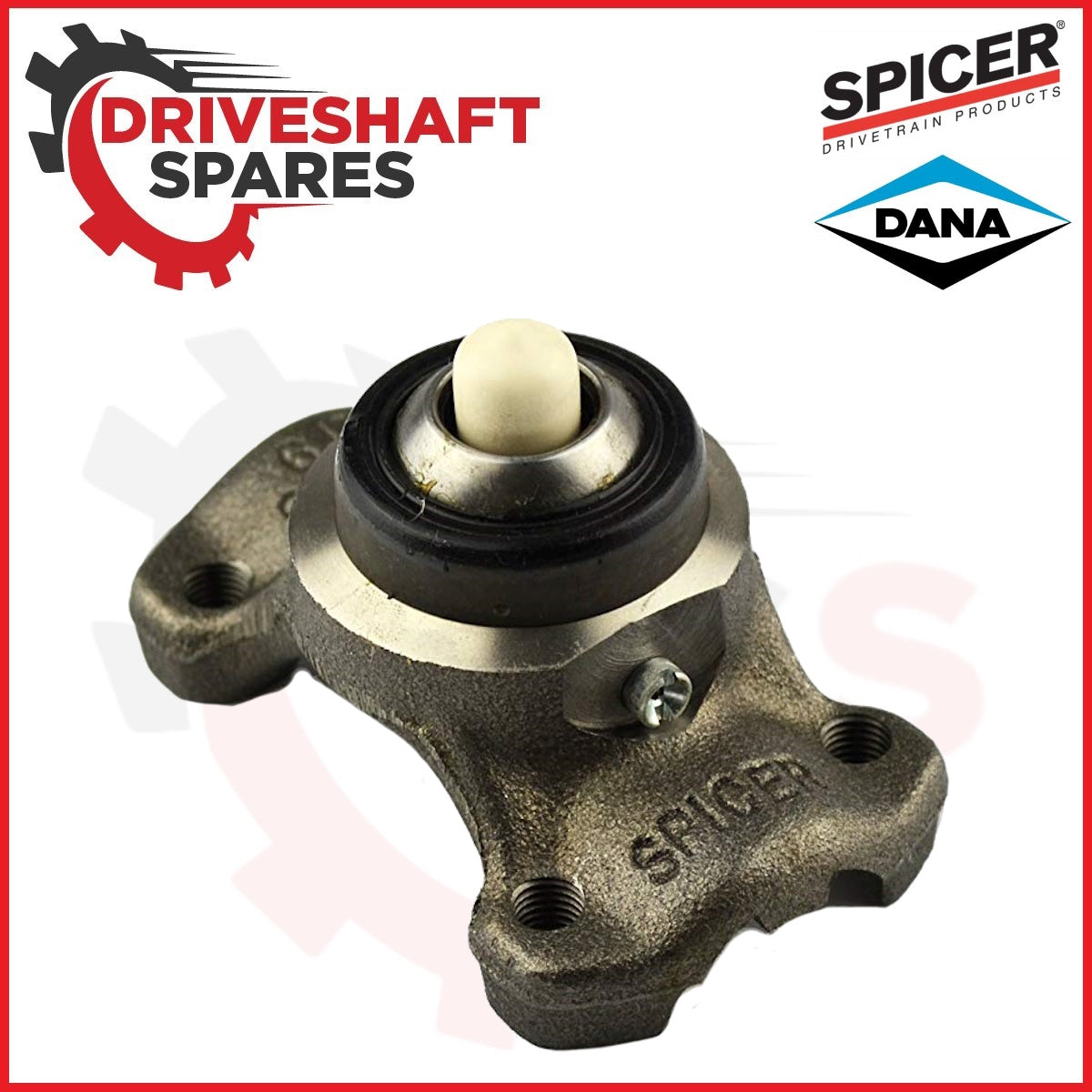

Jeep Cherokee XJ 84-01 Front 1310 CV Socket 211355X SPICER
This kit includes the following:
- 1X SPICER CV Socket yoke 211355X with lube fitting and ball repair kit already installed.

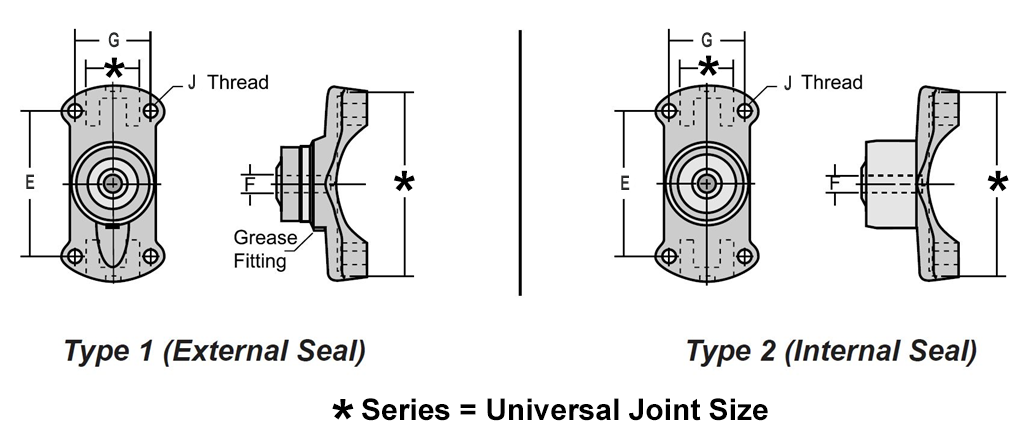

Socket Yoke Specifications:
| CV Socket Yokes | |
| Series | 1310 (1.062 x 3.219) |
| Type | 1 |
| (E) | 2.343 |
| (G) | 1.500 |
| (J) | .312-24Thd |
| (F) | 0.500 |
- U-Joint Series 1310
- Bolt Circle Diameter 2.782
- Hole Pattern Width A 1.500
- Hole Pattern Height B 2.343
- Bolt Hole Diameter C 3/8-24
- Pilot Diameter (Female standard, M Male)
- D Centerline of Joint to End of Spline E 1.531
- Ball Stud Size 0.500
- Rockwell/Meritor 131N-CV82-HD
- Neapco 7-0082
- Borg Warner 117-1782J
- Chrysler 3827050
- Chrysler 4384663
- General Motors 6258549
- Precision 607
Fits :
- Jeep Cherokee XJ 1984-2001
- Jeep Wrangler TJ 1997-2006
- DOES NOT FIT THE RUBICON
