Description

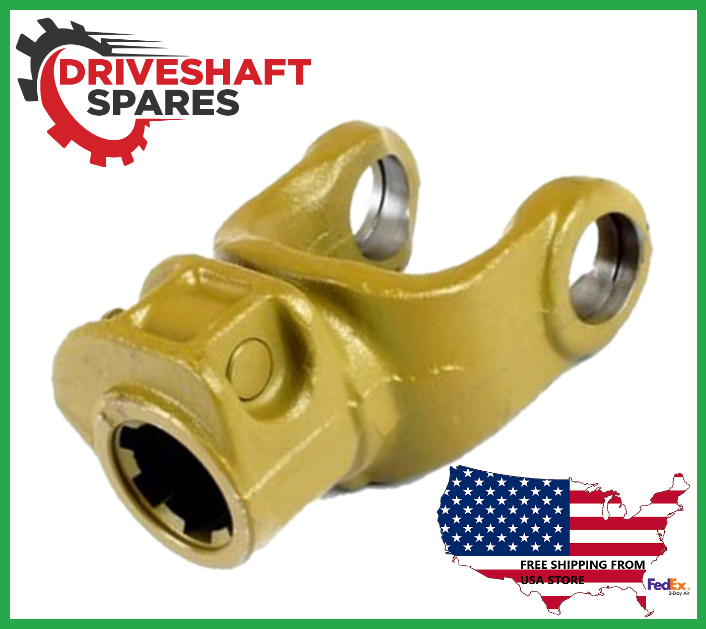

PTO Quick Release Yoke 27 x 74.6 – 6 splines – 34.9mm (1 3/8) A4 series 4.05.05
| PTO Splined Yokes | |
| Series | 4 (27mm x 74.6mm) |
| Splines | 6 |
| Spline (D) | 34.9 (1 3/8″) |
| Height H (mm) | 107 |
Part / Product Specification and Notes
| Size (ins) | 1 3/8 |
| Related products | 11122,2448 |
| German Reference | 21.10.00 |
| Universal Joint Dimensions | 27 x 74,5mm |
| Italian Old Reference. | 4.05.07 |
| Italian New Reference | 507040351 |
| Alternative to | 53503,115409 |
| Splines | 6 |
| Tariff Code | 8483908990 |
| Italian Series | AB4/A4 |
| PTO Series | AB4/A4, AW21/W2300 |
| Brand | Sparex |
For additional technical details / dimensions please refer to catalogue pages
- The Quick release yoke connects the PTO assembly to the tractor or implement. There are two main types of tractor yokes. The first type is a spring-lok, which uses a spring-loaded collar to attach and release the yoke and the second type is a quick disconnect, which uses a push-pin mechanism for connectivity. The tractor yoke can also be designated as 6-spline, 20-spline or 21-spline representing how it matches to the connection on the tractor.
- Bondioli/Pavesi 6 & Walterscheid 220/720 Series
