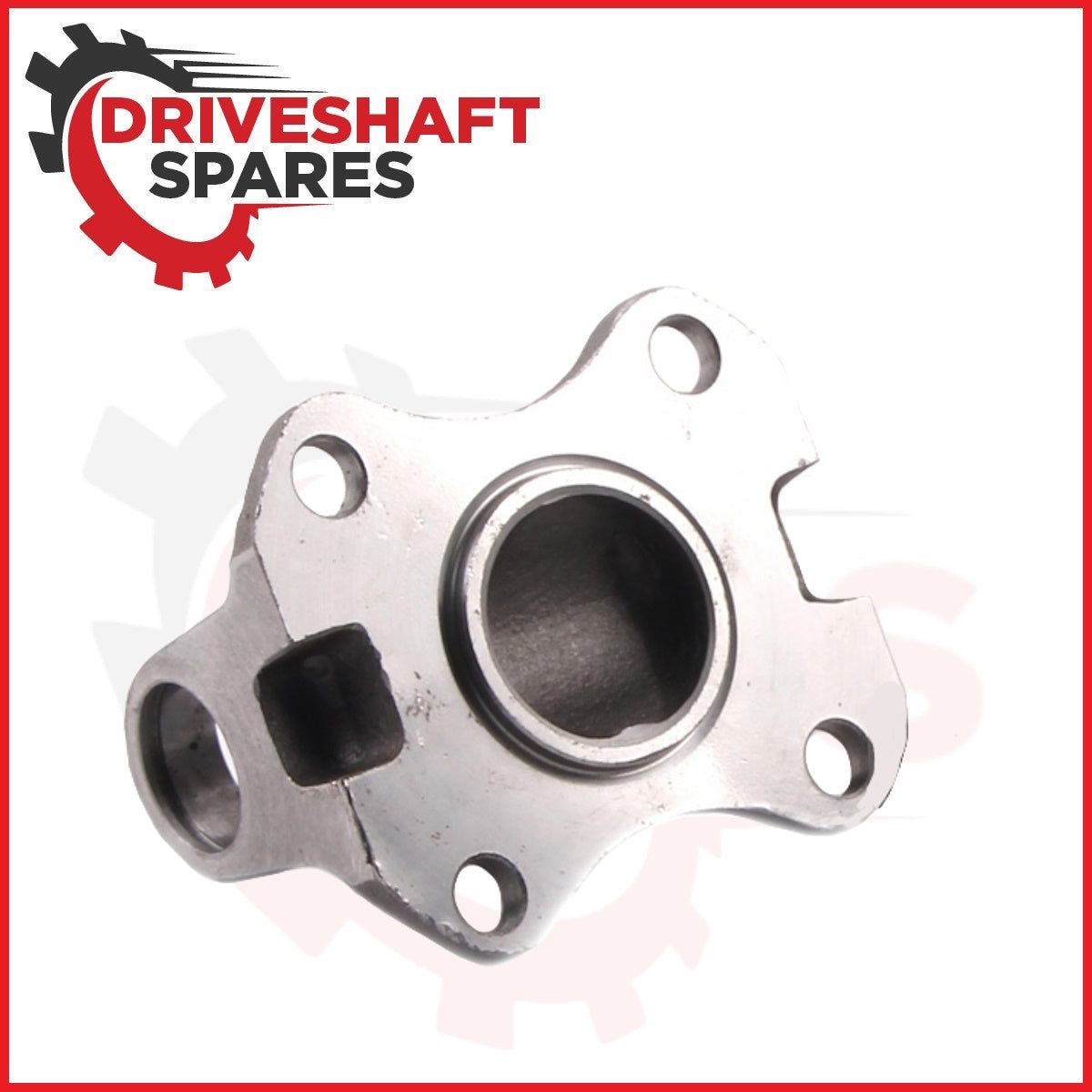

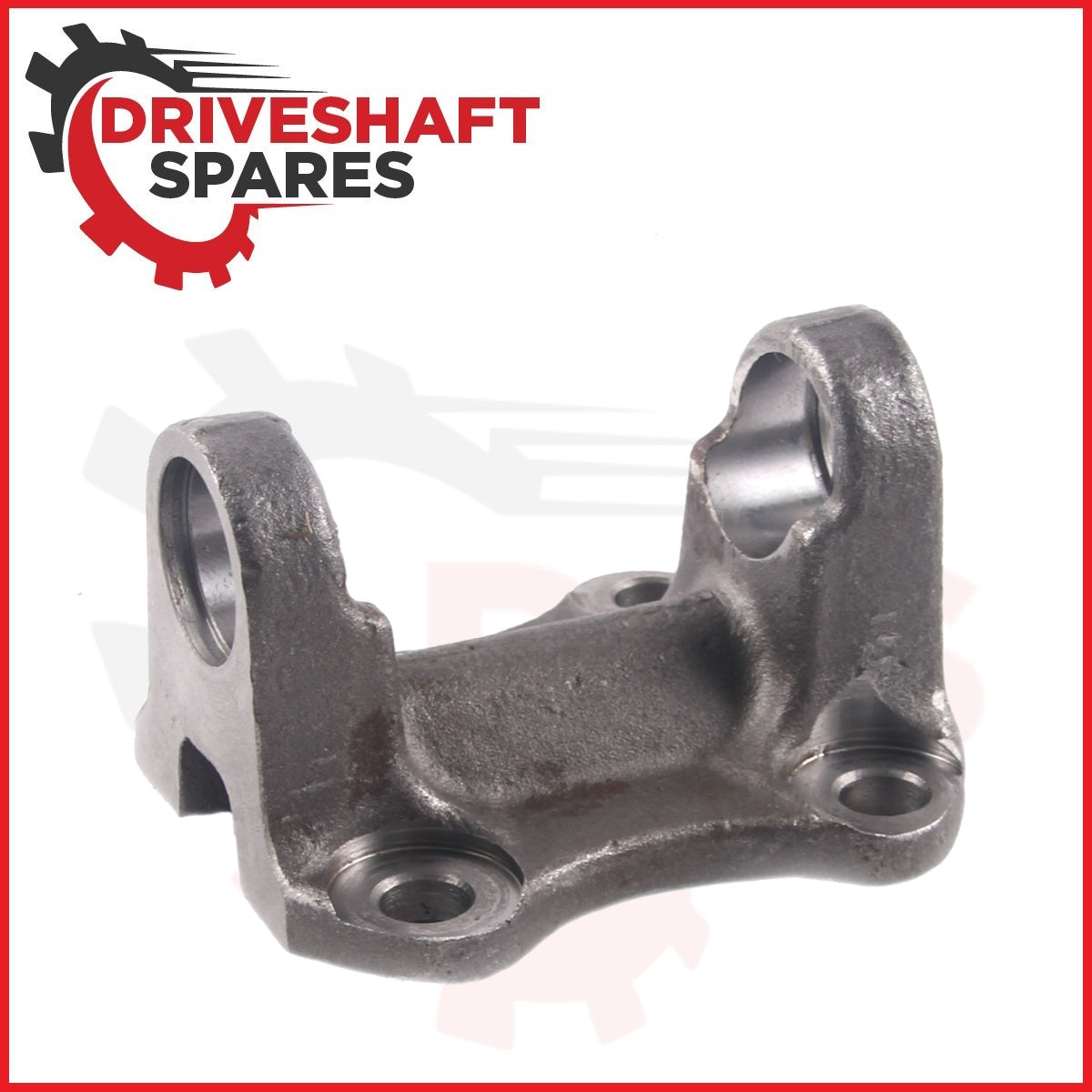

(NEW) 2005-2015 Toyota Tacoma/Hilux FY1330T Driveshaft Flange Yoke 1330 Series

(NEW) 2005-2015 Toyota Tacoma/Hilux FY1330T Driveshaft Flange Yoke 1330 Series
(NEW) 2005-2015 Toyota Tacoma/Hilux FY1330T Driveshaft Flange Yoke 1330 Series - Image 2
(NEW) 2005-2015 Toyota Tacoma/Hilux FY1330T Driveshaft Flange Yoke 1330 Series - Image 3

$48,00

478 in stock

Description

Rear Driveshaft Flange Yoke for Toyota Tacoma Hilux 2005-2015

  • You are buying an aftermarket 1330 Series Driveshaft Flange
  • This flange fits the Toyota Tacoma 2005-2015.

Flanges
Series 1330 (1.062 x 3.625)
(OD) 4.528
Pilot 1.811M
(H) 1.653
(X) 2.598
(Y) 2.598
(Z) 3.661
Holes 4
  • Alt Ref: 3302-185 / 2-2-01904 / 5001904 / 5001905/ YOKT5004020
  • Uses 5-213X Universal joint
  • PCD 3.661″ (93mm)
  • Hole centers 2.598″ x 2.598″ (66mm x 66mm)
  • Male Pilot 1.811″ (46mm)

Additional information

Weight 4,5 kg

Reviews

There are no reviews yet.

Be the first to review “(NEW) 2005-2015 Toyota Tacoma/Hilux FY1330T Driveshaft Flange Yoke 1330 Series”

Your email address will not be published. Required fields are marked *

cb212088-1x-5-213xs-x-3

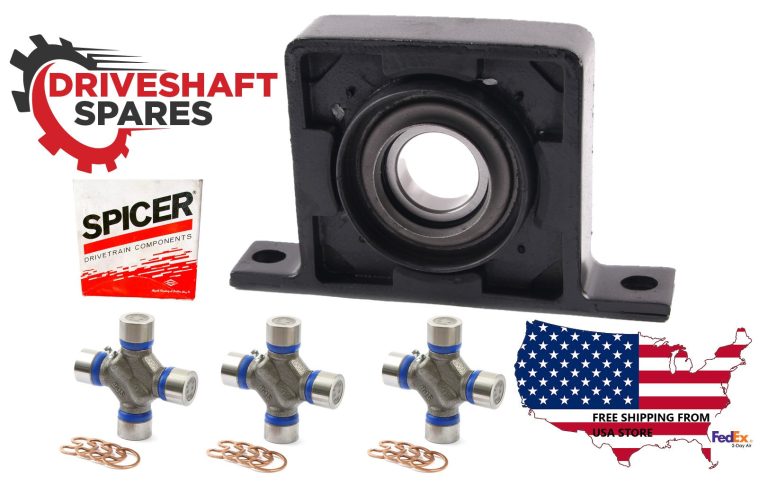

Dodge Dakota 2000-2010 Driveshaft Rebuild Kit Universal Joints & Center Bearing
