Description

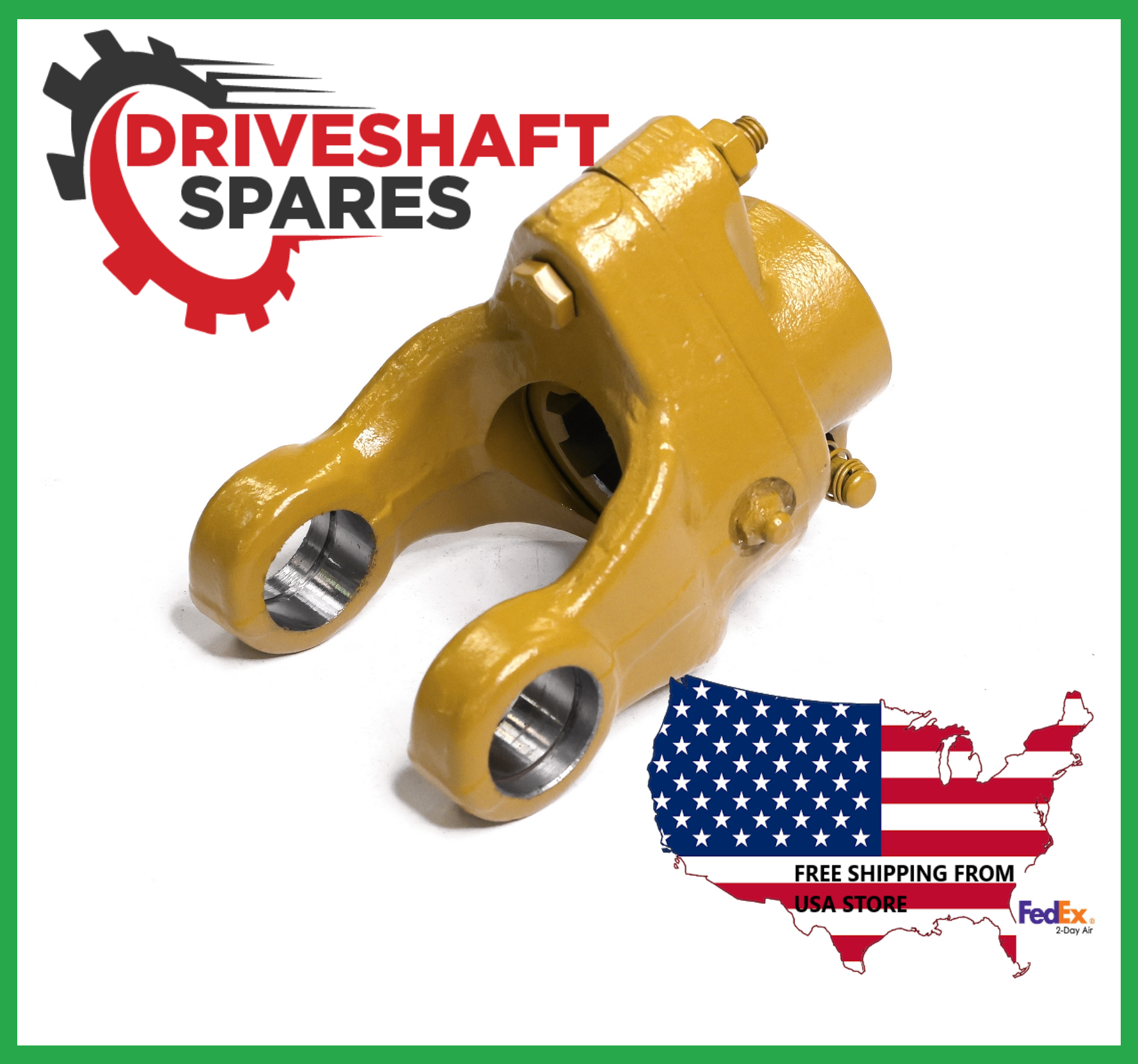

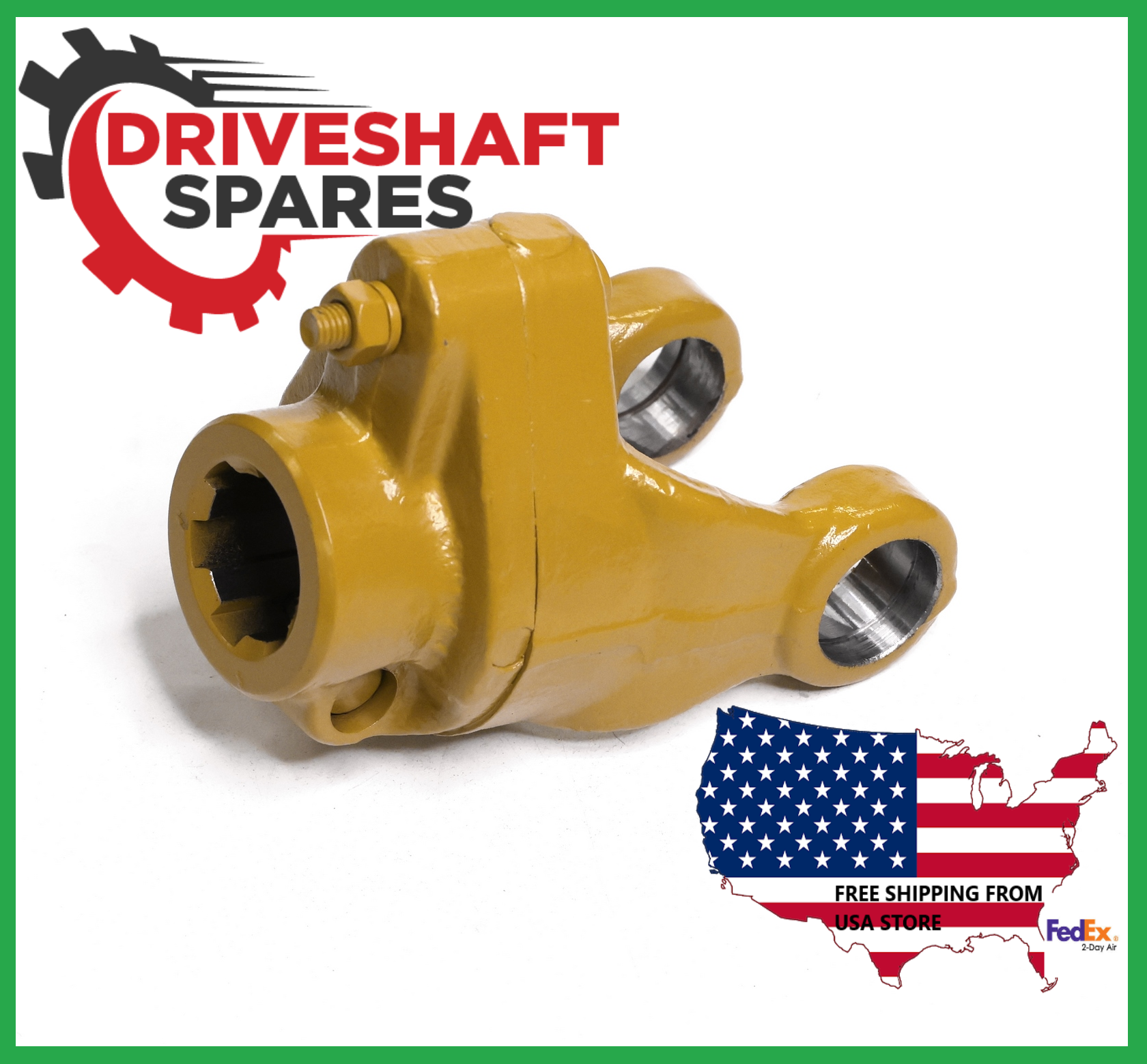

Shear Bolt torque limiter AB4 / AW21 Series 1400Nm, 6 splines 34.9mm (1 3/8″)
PTO Shear Bolt Torque Limiter
Series
4 (27mm x 74.6mm)
Splines
6
Spline (D)
34.9 (1 3/8″)
Total Length (L)
113
Torque Nm
1400
Shear Pin Clutch 27 X 74.6
1400Nm,
6 splines 34.9mm (1 3/8″)
H-113mm
Weasler: 580-8406-18
| PTO Shear Bolt Torque Limiter | |
| Series | 4 (27mm x 74.6mm) |
| Splines | 6 |
| Spline (D) | 34.9 (1 3/8″) |
| Total Length (L) | 113 |
| Torque Nm | 1400 |
Shear Pin Clutch 27 X 74.6
1400Nm,
6 splines 34.9mm (1 3/8″)
H-113mm
Weasler: 580-8406-18
