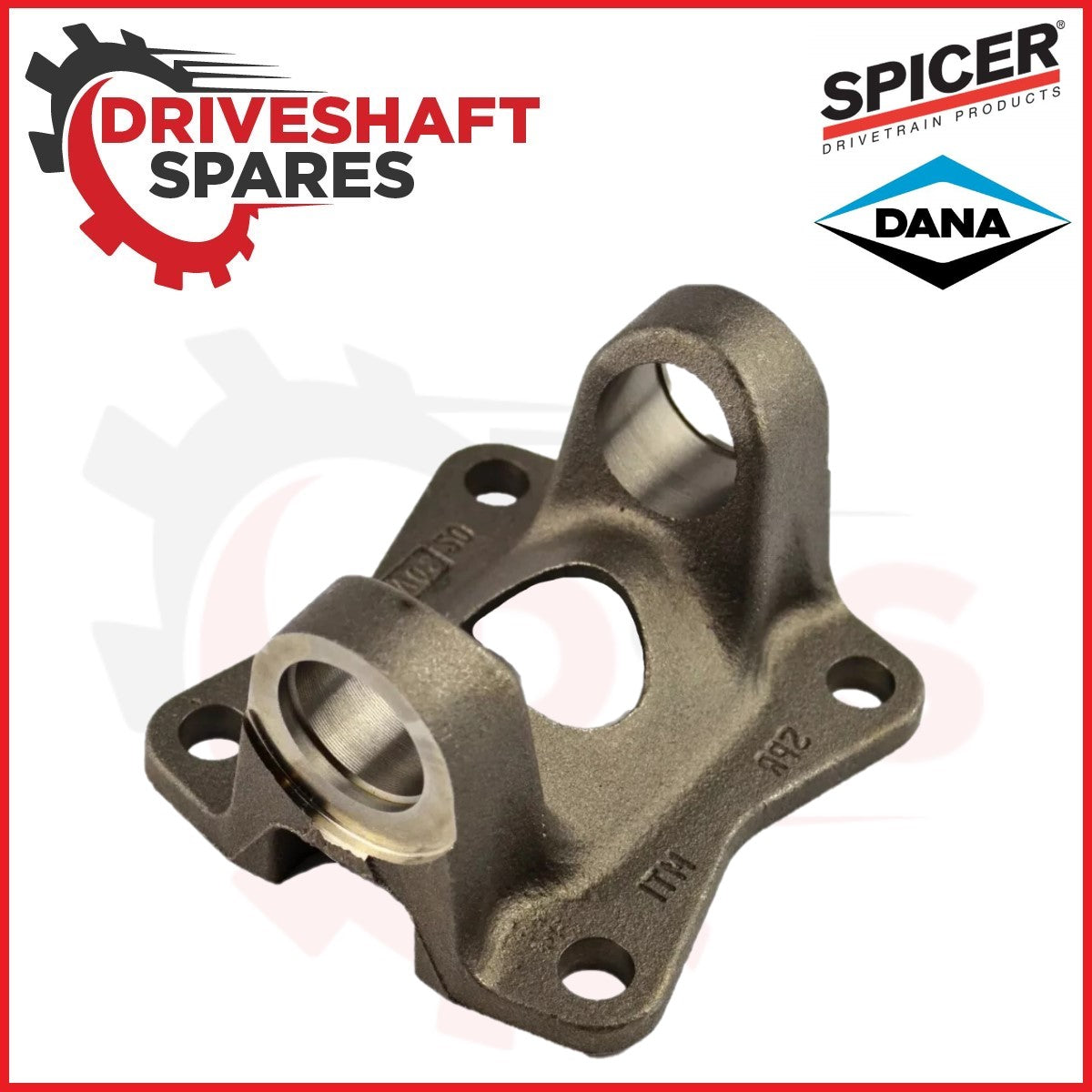

SPICER 1410 SERIES – FORD F250, F350 REAR DRIVESHAFT 4 BOLT FLANGE YOKE 2C3Z-4865-BA – SKU# 3-2-1839
| Design Style | Snap Ring Design | |
| U-Joint Series | 1410 | |
| Universal Joint Retaining Width | 4.438 | |
| Universal Joint Bearing Diameter | D | 1.188 |
| Flange Diameter | A | 5.750 |
| Bolt Circle Diameter | B | 4.750 |
| Horizontal Distance Between Holes (center to center) | 3.359 | |
| Vertical Distance Between Holes (center to center) | 3.359 | |
| Bolt Hole Diameter | .500-D | |
| Bolt Hole Quantity | 4.000 | |
| Pilot Diameter (M-Male, F-Female) | C | 2.953F |
| Centerline of Joint to Flange Face | G | 2.000 |
| Compatible U-Joint Kits | SPI-5-160X,SPI-5-1410X | |
| 22.000 | ||
| Notes | Bolt holes are equally spaced. Part has hole thru center. | |
| Cast/Forged | Cast |
