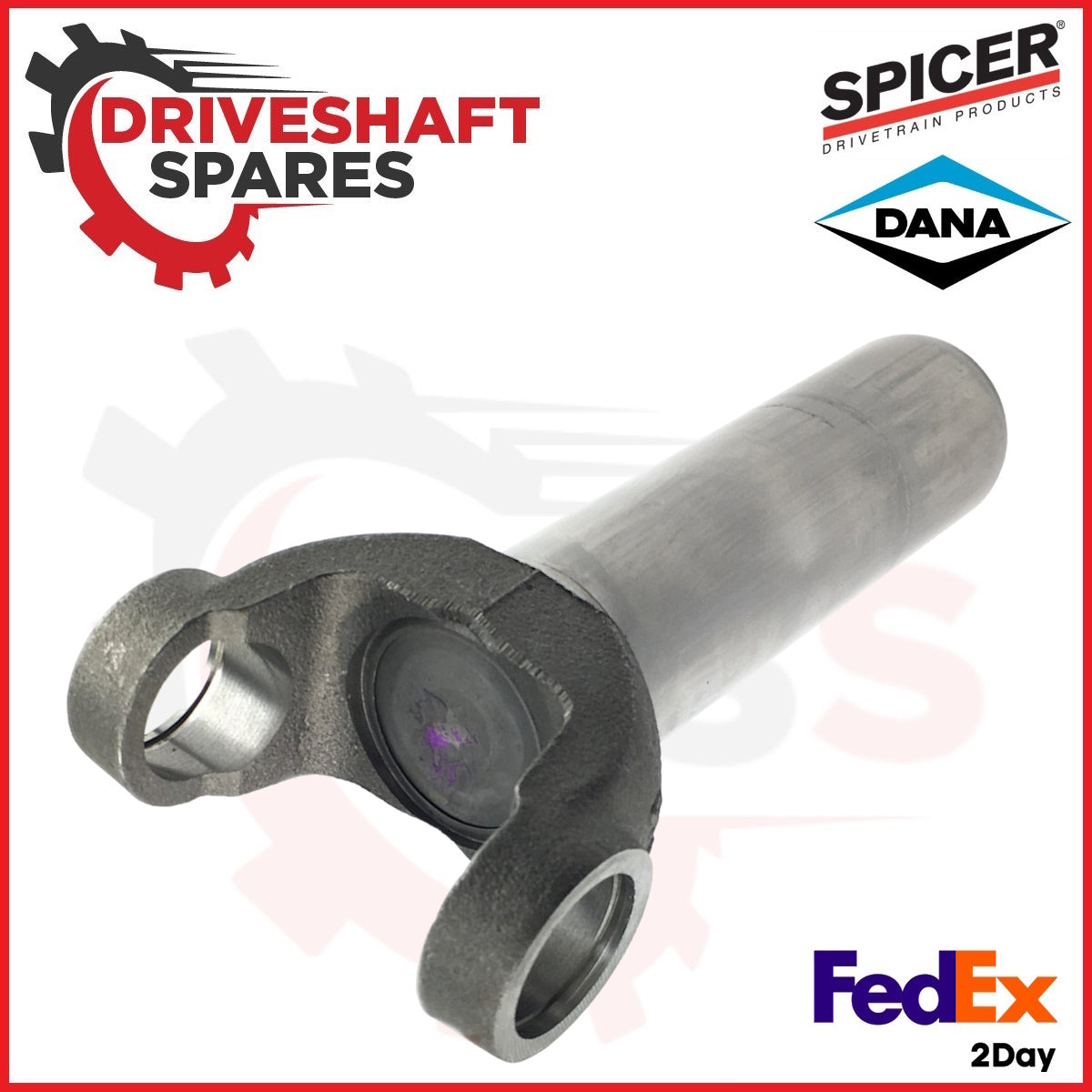

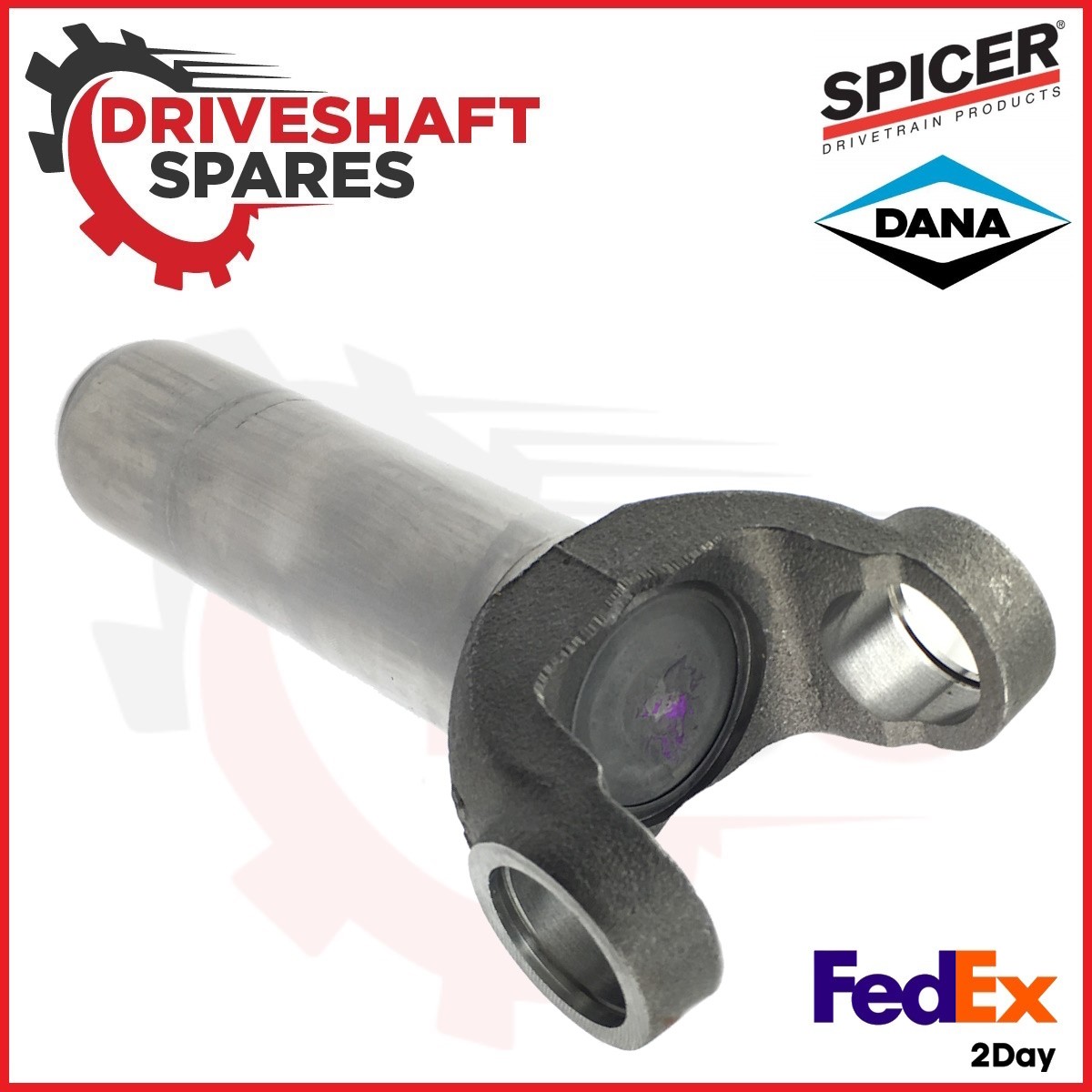

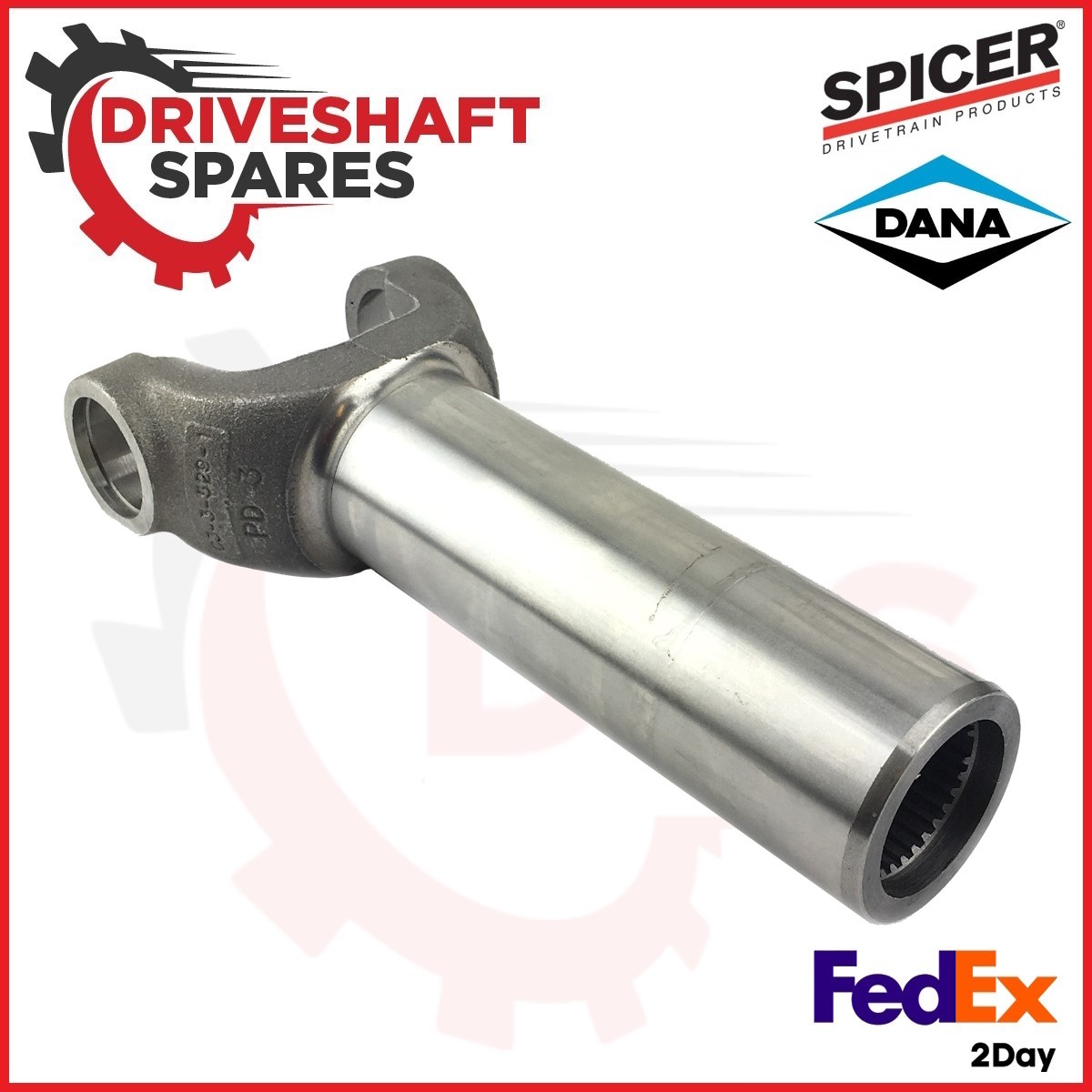

SPICER Transmission 32 Spline Slip Yoke 1350 Series 3-3-5551X GM TH400
- You are buying a SPICER Transmission Slip Yoke that fits the following transmission cases:
- Applicable to Chevy and GMC 1350 Series Drive Lines used on 208 Transfer Cases and Other Transfer Cases with 1350 series 32 spline output shafts.
Transmission Slip Yoke Specifications
| U-Join tSeries | 1350 | |
| Spline Major Diameter | 1.378″ | |
| Spline Count | 32 | |
| Spline Type | 31 Based on 32 | |
| Universal Joint Retaining Width | (E) | 3.875″ |
| Universal Joint Bearing Diameter | (D) | 1.188″ |
| Centerline of Joint to End of Spline | (J) | 7.940″ |
| Ground Hub Diameter | (R) | 1.886″ |
| Counterbore Diameter | 1.430″ | |
| Counterbore Depth | 0.220″ | |
| Style | Snap Ring |
- Compatible with SPICER Reference Numbers: 5-178X / 5-1350X / SPL30-1X
- Victory Performance Parts Reference Numbers: SY1350-4040
- Spicer Reference Number: 3-3-5551X
