Description

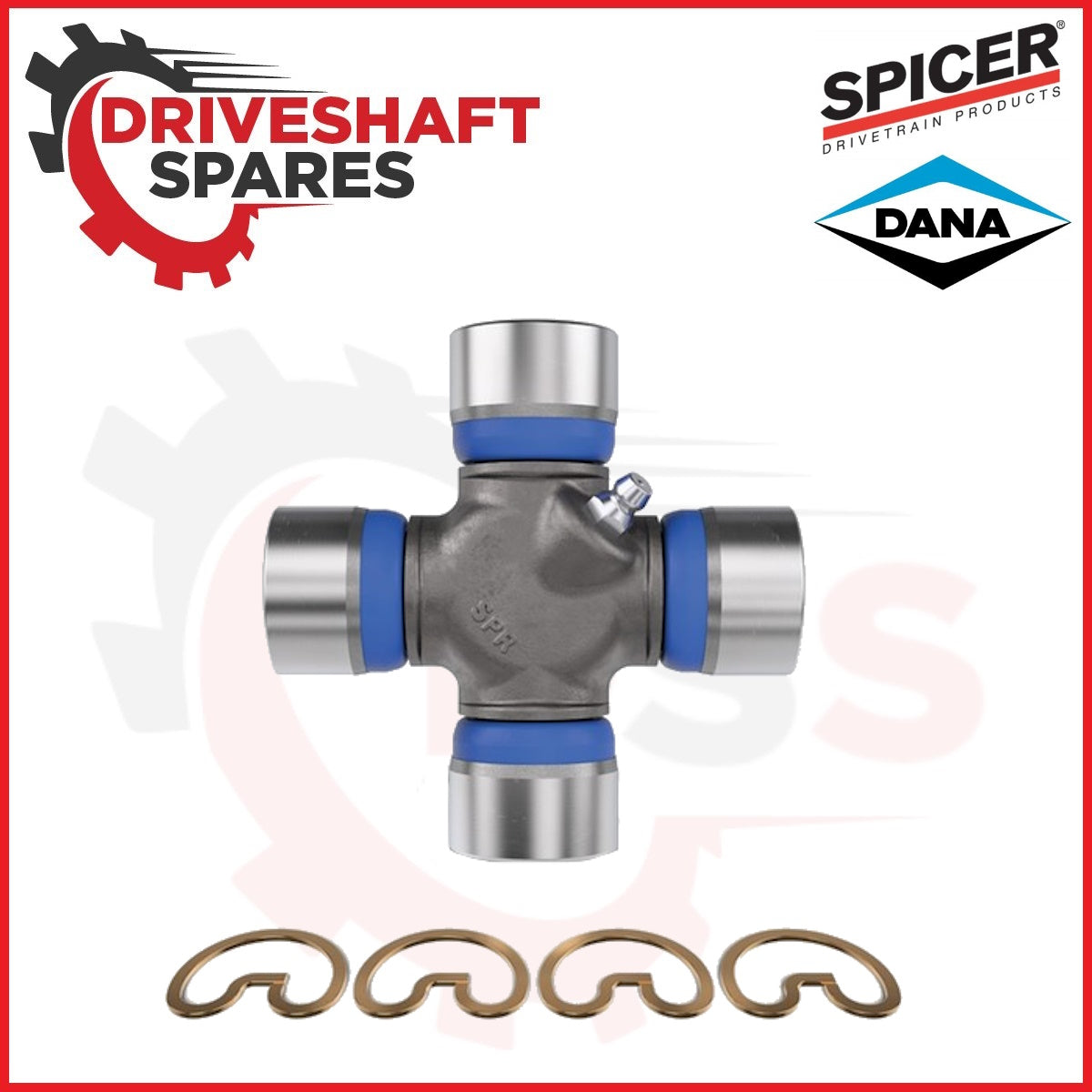

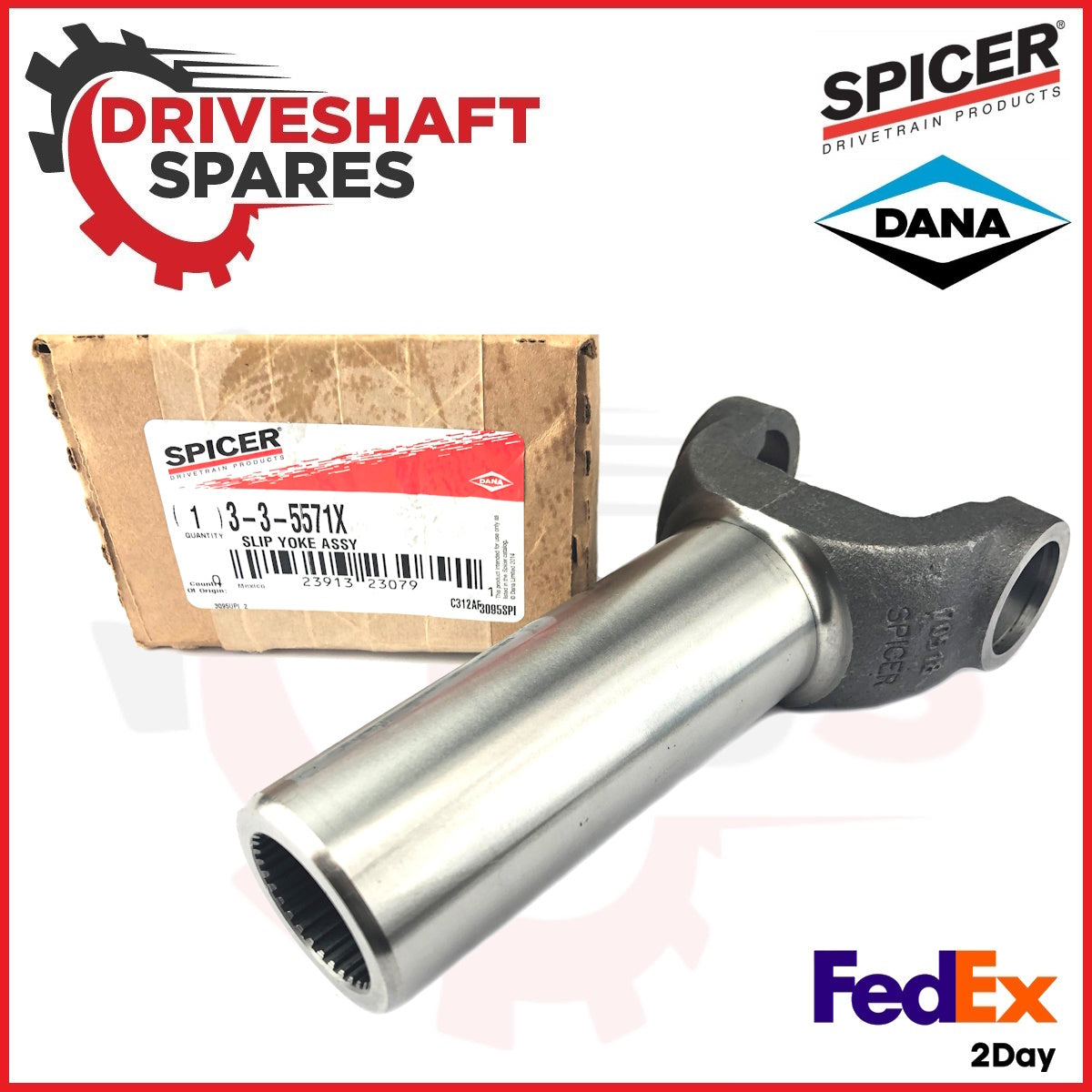

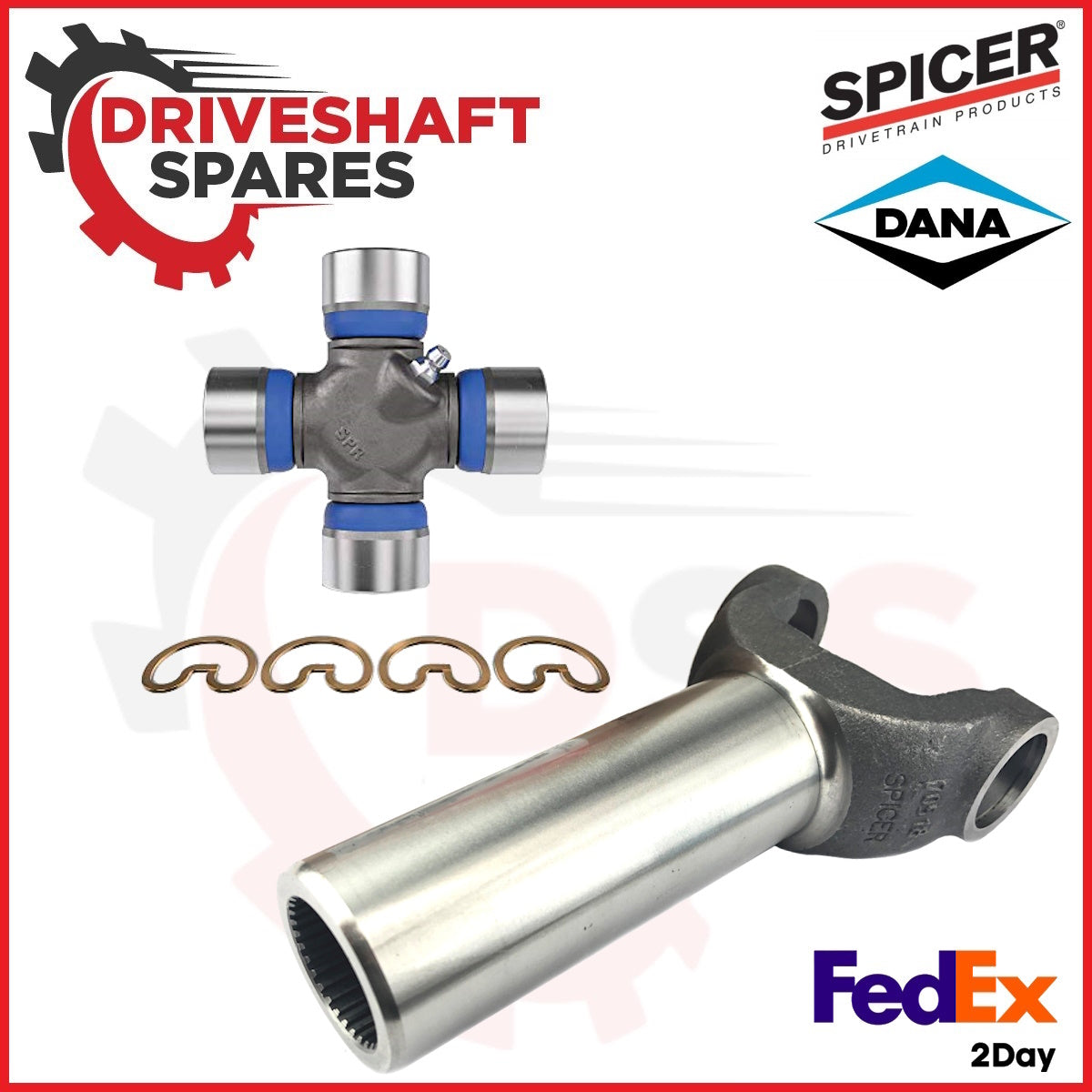

SPICER Transmission Slip Yoke 1350 Series 32 Spline – TH400, 4L80-E, Muncie M20, 21 & 22, BorgWarner T10 + SPICER 5-178X Universal Joint
| U-Joint Series | 1350 | |
| Spline Major Diameter | 1.378 | |
| Spline Count | 32.000 | |
| Spline Type | 31 Based On 32 Spline | |
| Universal Joint Retaining Width | E | 3.875 |
| Universal Joint Bearing Diameter | D | 1.188 |
| Centerline of Joint to End of Spline | J | 6.938 |
| Ground Hub Diameter | R | 1.886 |
| Counterbore Diameter | 0.000 | |
| Counterbore Depth | 0.000 | |
| Style | Snap Ring | |
| Slip Yoke Plug part number (included) | SPI-500166-24 | |
| Compatible U-Joint Kits | SPI-5-178X,SPI-5-1350X,SPI-SPL30-1X |
| Imperial Universal Joints | |
| (D) | 1.188 |
| (L) | 3.625 |
| Type | 2 |
- Cap Diameter: 1.188″
- Distance between snaprings: 3.625″
- Spicer: 5-178X
- Precision: 331
- GMB: GU2200
- Rockwell/Meritor CP178X
- Borg Warner 114-635
- Neapco 2-0053
- Borg Warner 114-10HD, 114-578
- Chrysler 1516854, 2298823, 4797307, 4797307AB
- Ford 4OT7039A, 01T7039, B5T7039A, B5TZ4635A, C1TZ3249A, C5TZ4635E, F5TZ4635A, F81Z4635BB
- General Motors 374246, 609515
- Toyota 043710C094, 043710C080
