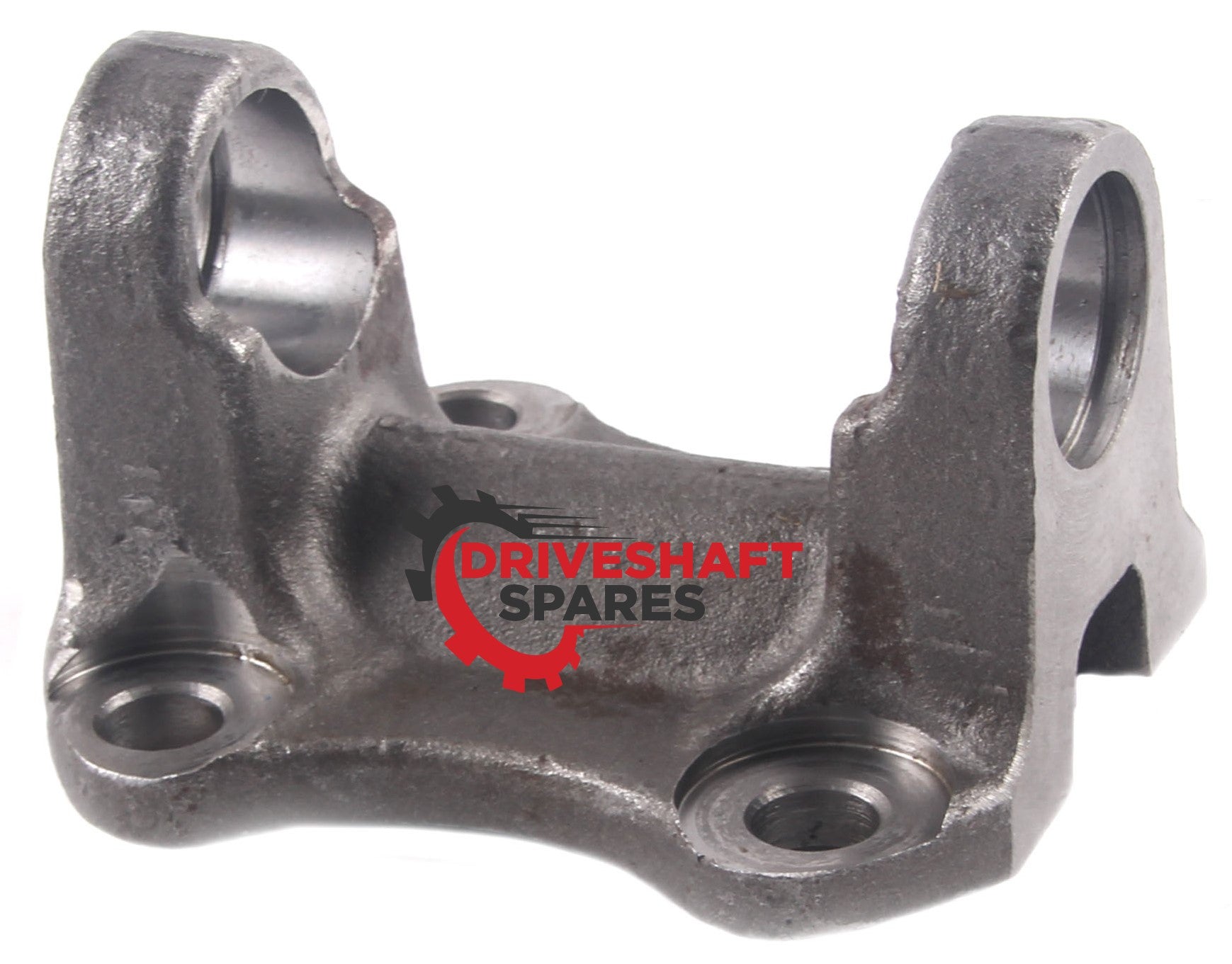

Flange Specifications:
1330 Series Snap Ring Design
| Design Style |
|
Snap Ring Design |
| U-Series |
|
1330 |
| Universal Joint Retaining Width |
|
3.875″ |
| Universal Joint Bearing Diameter |
(D) |
1.062″ |
| Flange Diameter |
(A) |
4.528″ |
| Bolt Circle Diameter |
(B) |
3.661″ |
| Horizontal Center to Center Distance |
|
2.589″ |
| Vertical Center to Center Distance |
|
2.589″ |
| Bolt Hole Diameter |
|
0.446-D |
| Bolt Hole Quantity |
|
4 |
| Pilot Diameter |
(C) |
1.811″ Male |
| Center line of Joint to Flange Face |
(G) |
1.653″ |
Spicer Part No Ref: 2-2-01904 / 5019389 / 5001904 / 5001905
Universal Joint Specifications:

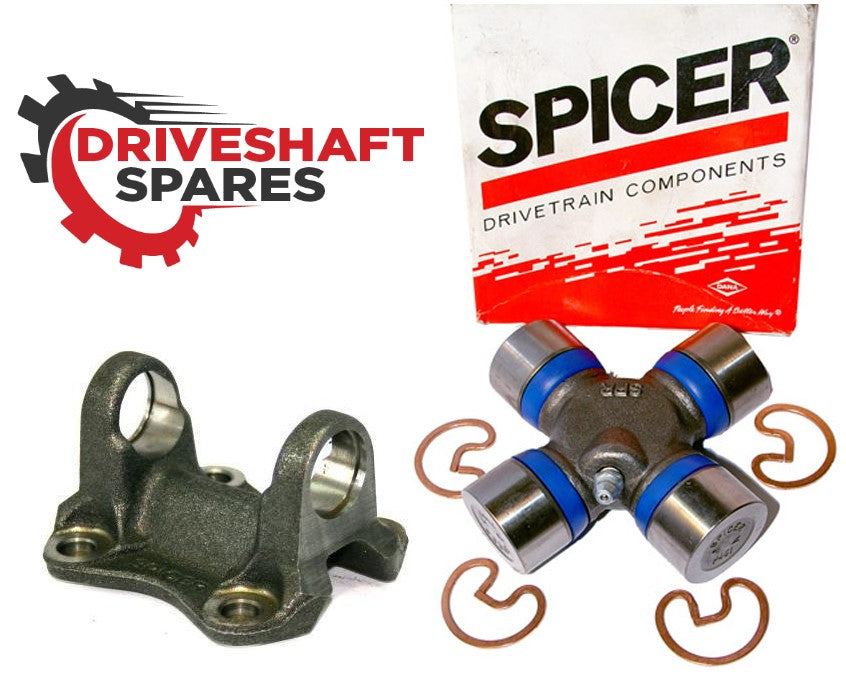

Genuine Spicer Universal Joint 5-213X
1330 Series
U-Joint Style: Outside Snap Ring
(D) Cap Size: 1.062″
(D1) Cap Outside Diameter: 1.062″
(G1) Distance between Retainer Rings: 3.625″
(D2) Cap Outside Diameter: 1.062″
(G2) Distance between Retainer Rings: 3.625″
Greaseable: Yes
|
