Toyota Tacoma 2WD SPICER Driveshaft Flange + SPICER Universal Joint – 5001904

Description

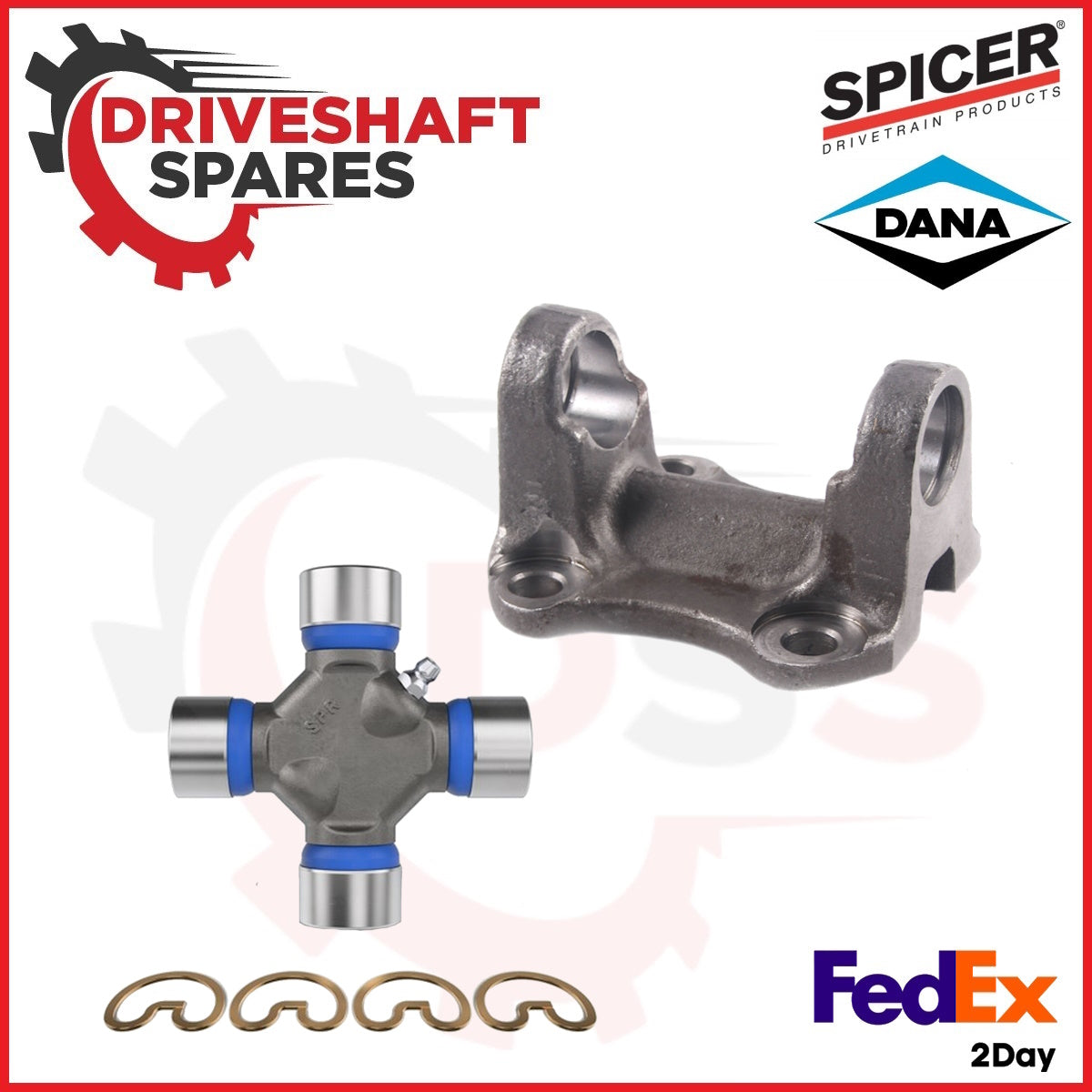

YOU ARE BUYING 1X 1330 Series Toyota Tacoma Spicer Flange Yoke with 1X Spicer u-joint in kit form as seen in the cover image.

Flange Specifications:

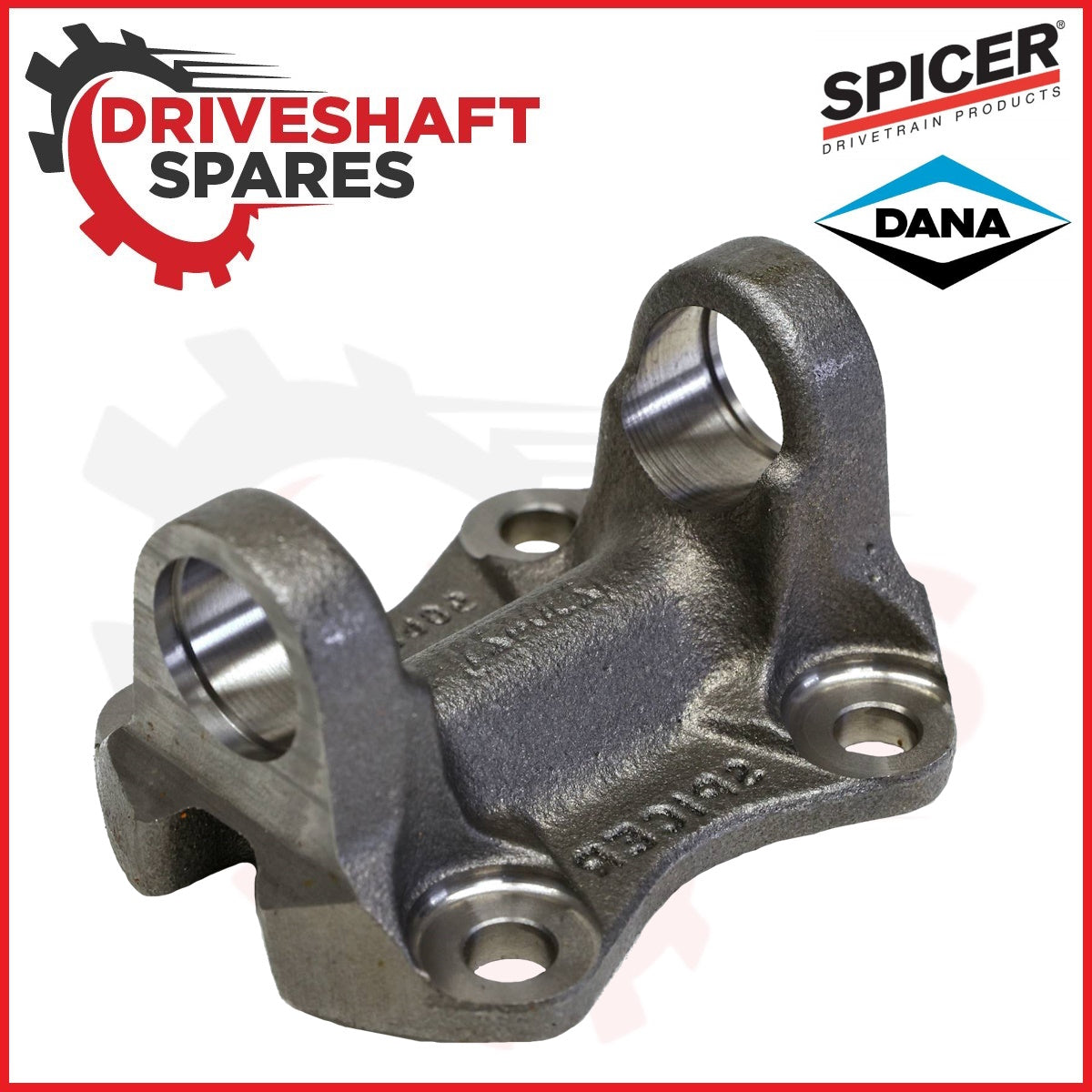

OE Dana Spicer Driveshaft Flange Yoke – FY1330TSB

1330 Series Snap Ring Design

Design Style		Snap Ring Design
U-Series		1330
Universal Joint Retaining Width		3.875″
Universal Joint Bearing Diameter	(D)	1.062″
Flange Diameter	(A)	4.528″
Bolt Circle Diameter	(B)	3.661″
Horizontal Center to Center Distance		2.589″
Vertical Center to Center Distance		2.589″
Bolt Hole Diameter		0.446-D
Bolt Hole Quantity		4
Pilot Diameter	(C)	1.811″ Male
Center line of Joint to Flange Face	(G)	1.653″

Spicer Part No Ref: 2-2-01904 / 5019389 / 5001904 / 5001905

Genuine Spicer Universal Joint 5-213X

Weight	4,5 kg
