Description

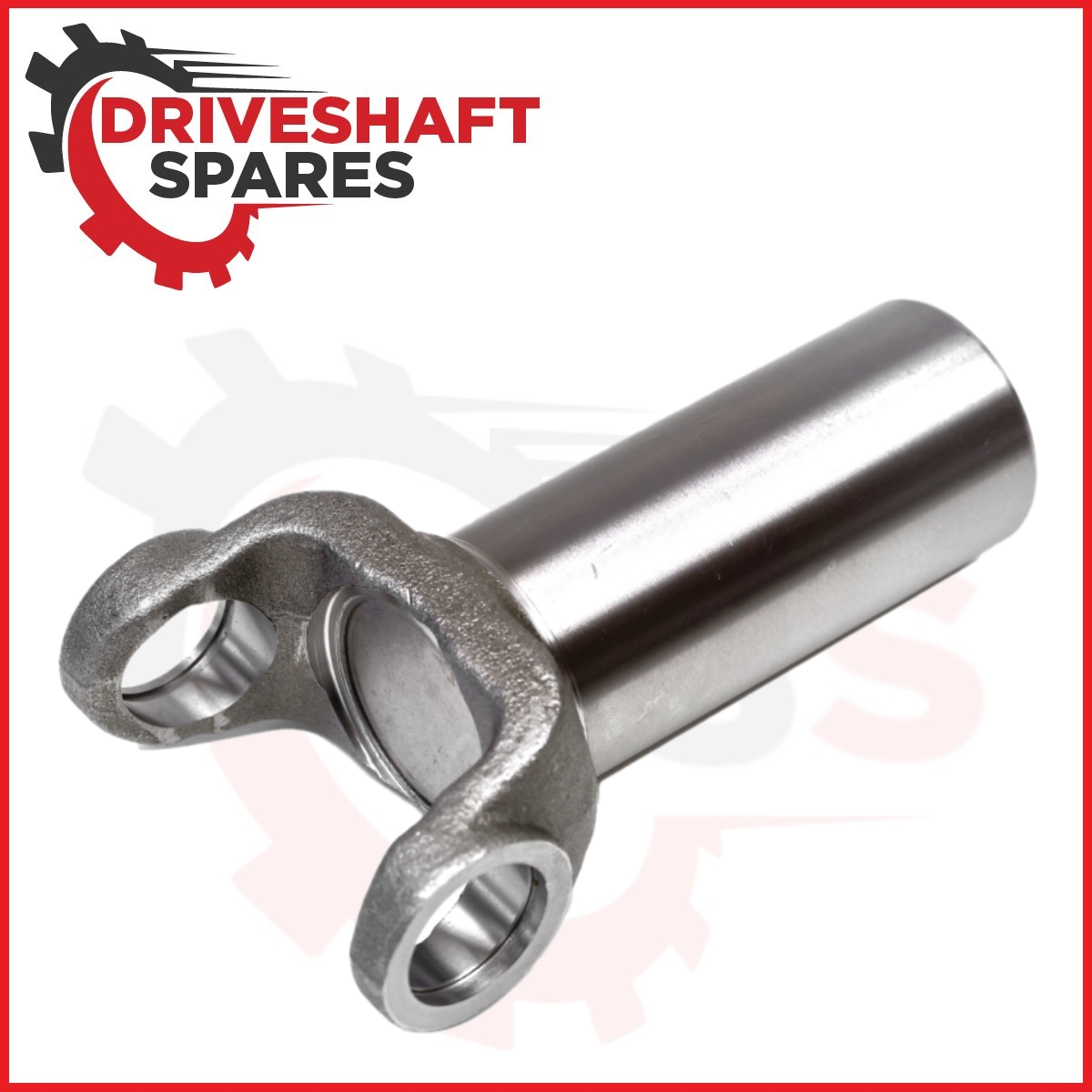

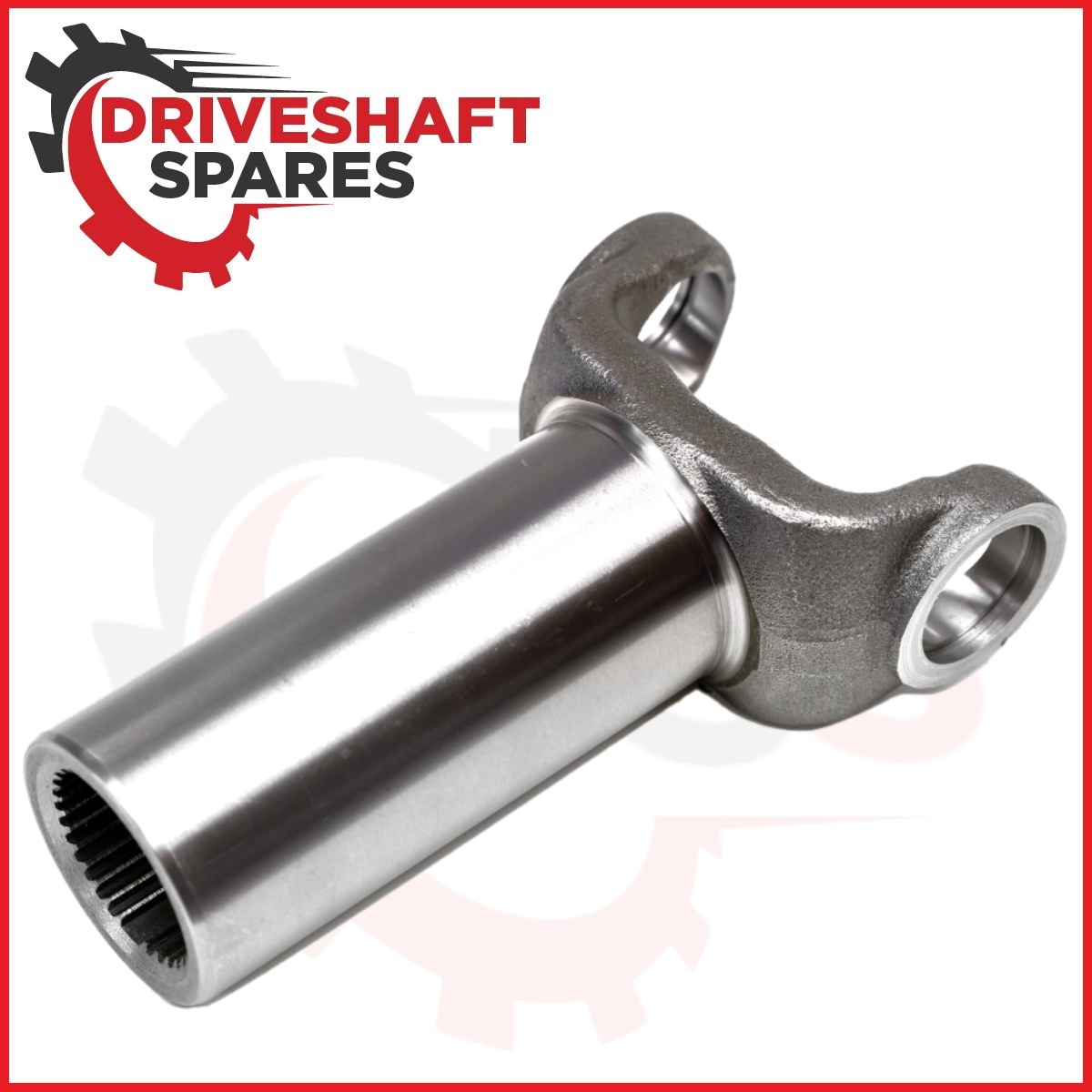

2-3-10431X Drive Shaft Transmission Slip Yoke 1310 Series
| U-Joint Series | 1310 | |
| Spline Major Diameter | 1.397 | |
| Spline Count | 32.000 | |
| Spline Type | 31 Based On 32 Spline | |

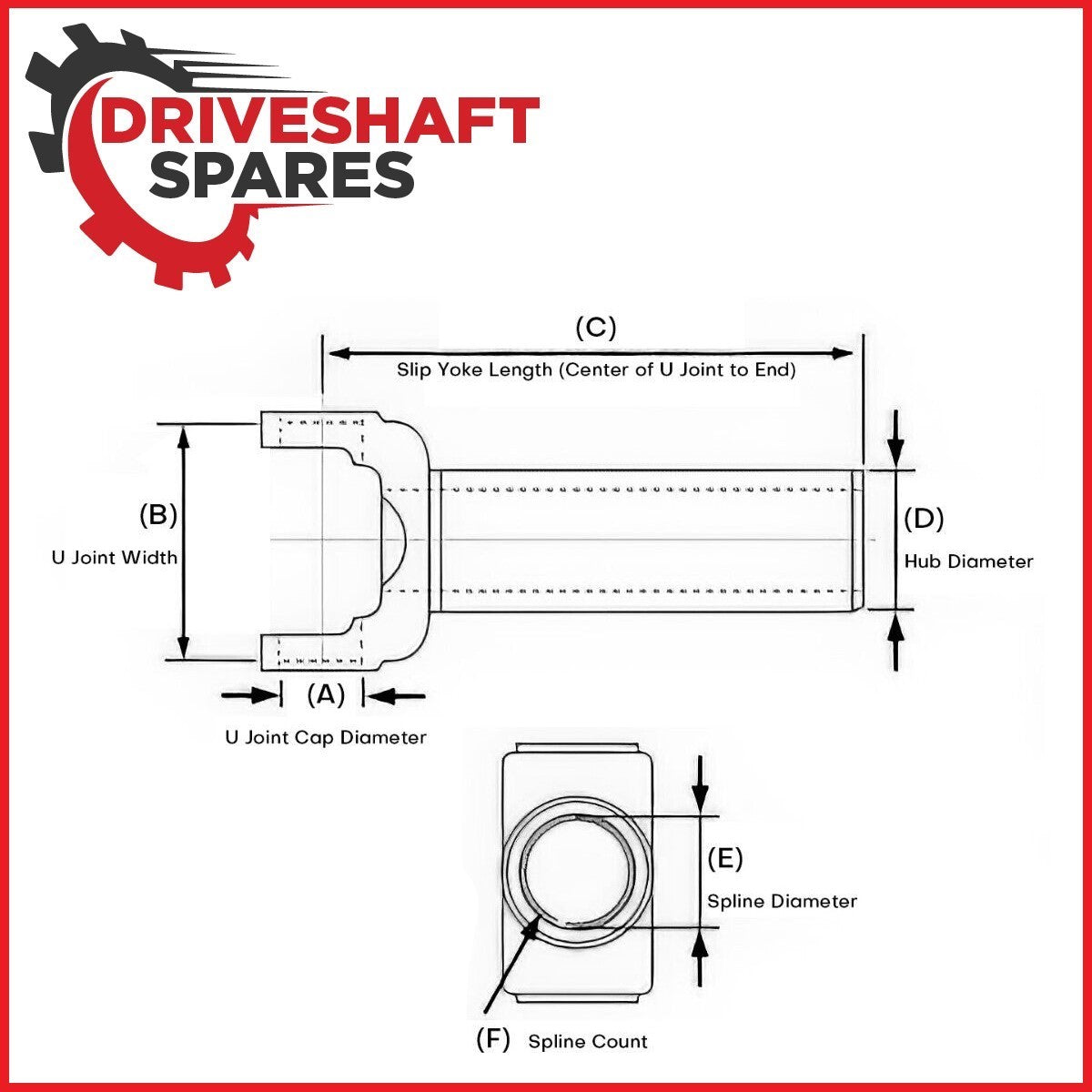

| Universal Joint Retaining Width | E | 3.469 |
| Universal Joint Bearing Diameter | D | 1.062 |
| Centerline of Joint to End of Spline | J | 5.500 |
| Ground Hub Diameter | R | 1.885 |
| Counterbore Diameter | 0.000 | |
| Counterbore Depth | 0.000 | |
| Style | Snap Ring | |
| Slip Yoke Plug part number (included) | SPI-500166-22 | |

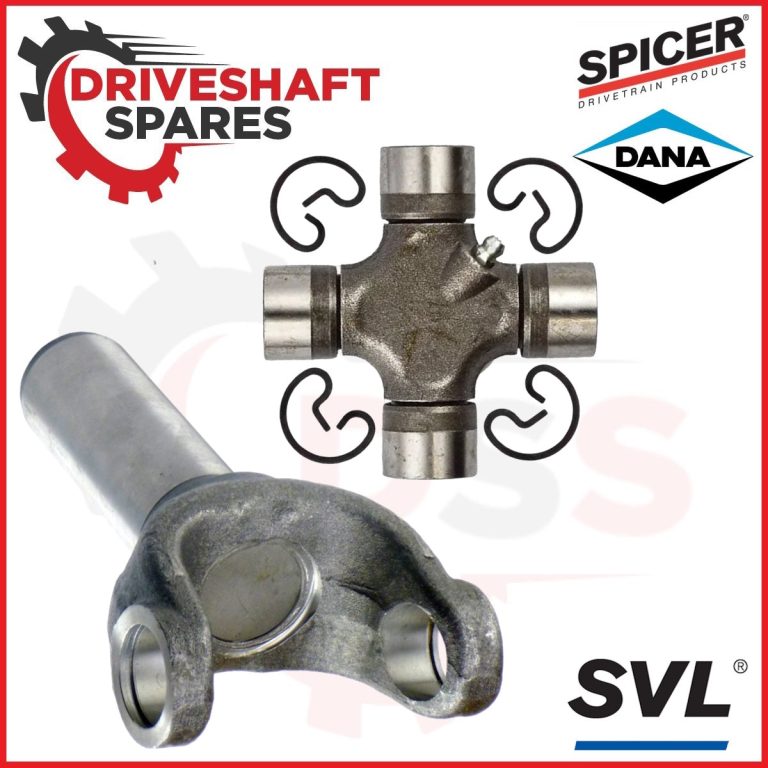

| Compatible U-Joint Kits | SPI-5-153X,SPI-5-1310X,SPI-5-1310-1X |
Technical Parameter:
Series:1310
Style:Outside Snap Ring
U-Joint Cap Diameter:1.063 inch
U-Joint Width:3.219 inch
Slip Yoke Length:5.500 inch (Center Line to End of Spline)
Barrel Diameter:1.885 inch
Spline Diameter:1.397 inch
Outside Yoke Dimension:3.466 inch
Number of Spline:32 (31 with blind spot)
Spline Counter Bore:No
Vehicle Make:GM
Material:Steel
Interchange Part Number:
2-3-10431X
2310431X
N2-3-10431X
