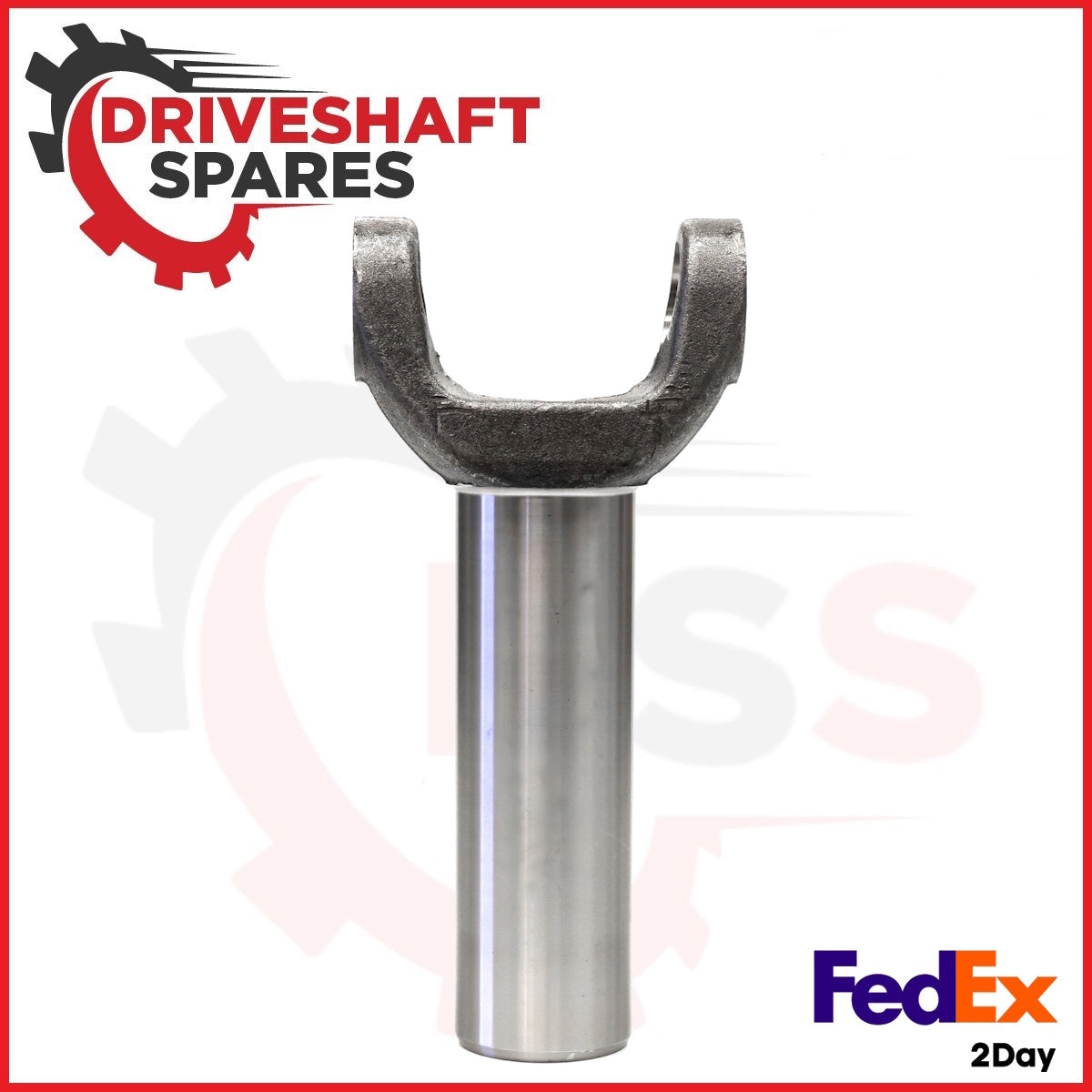

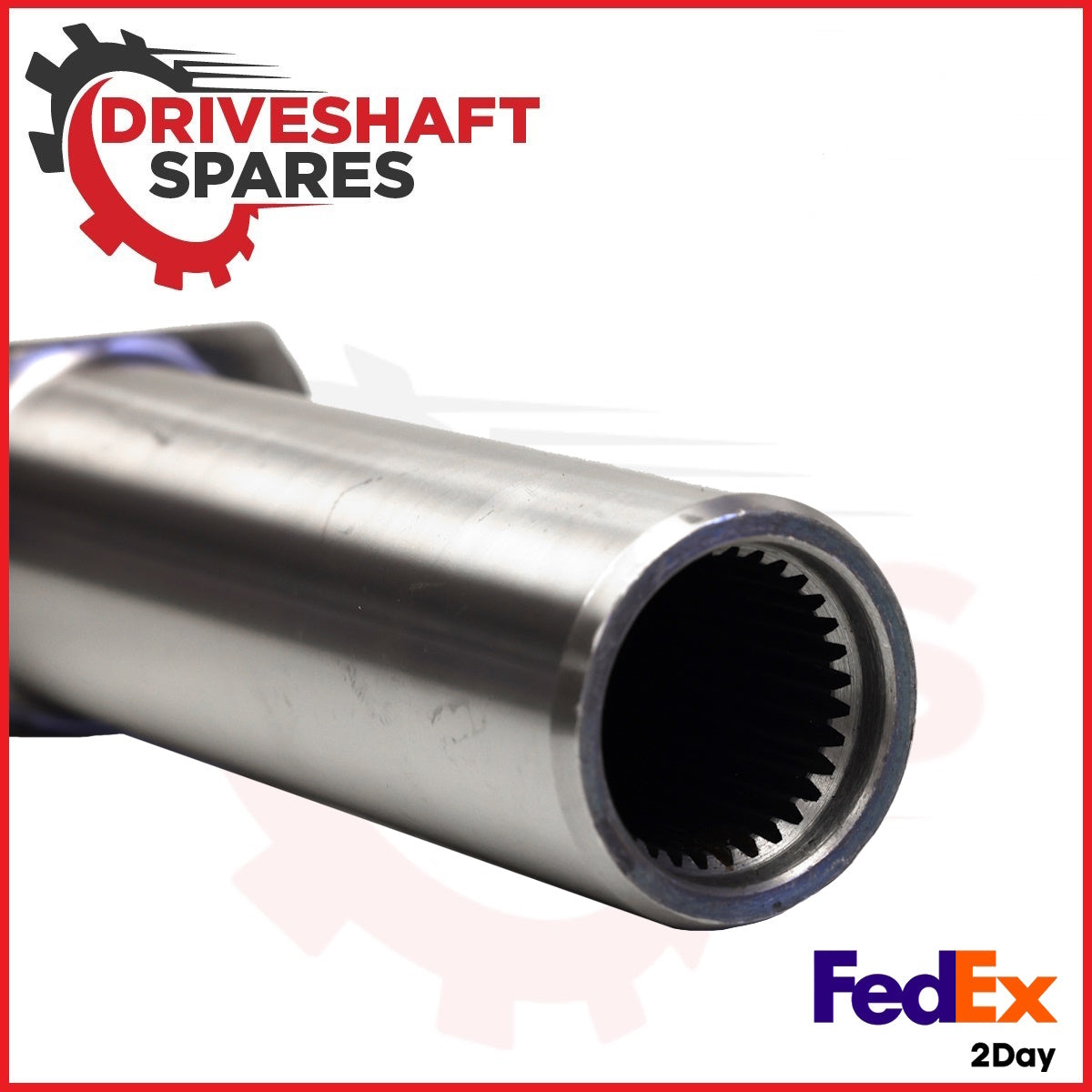

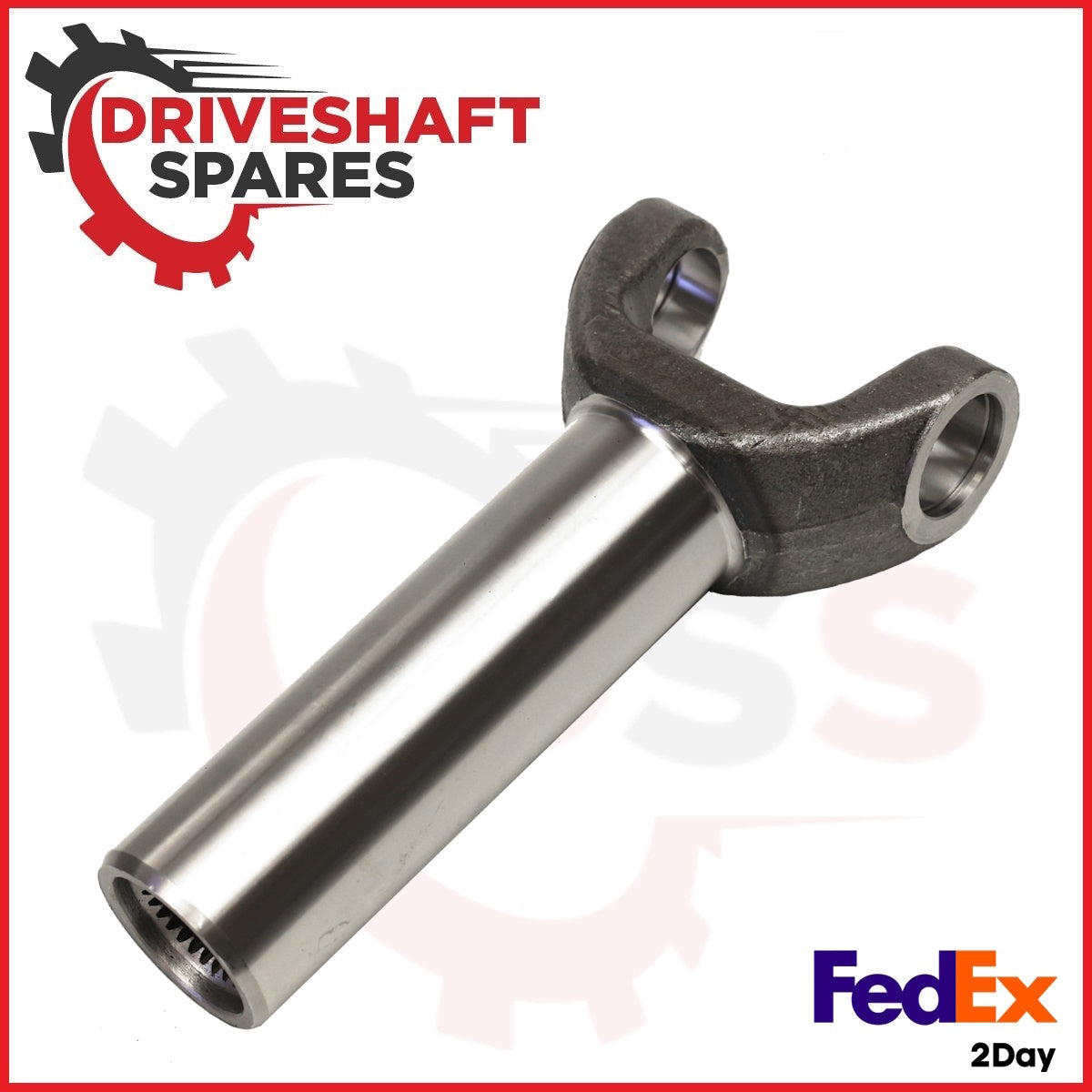

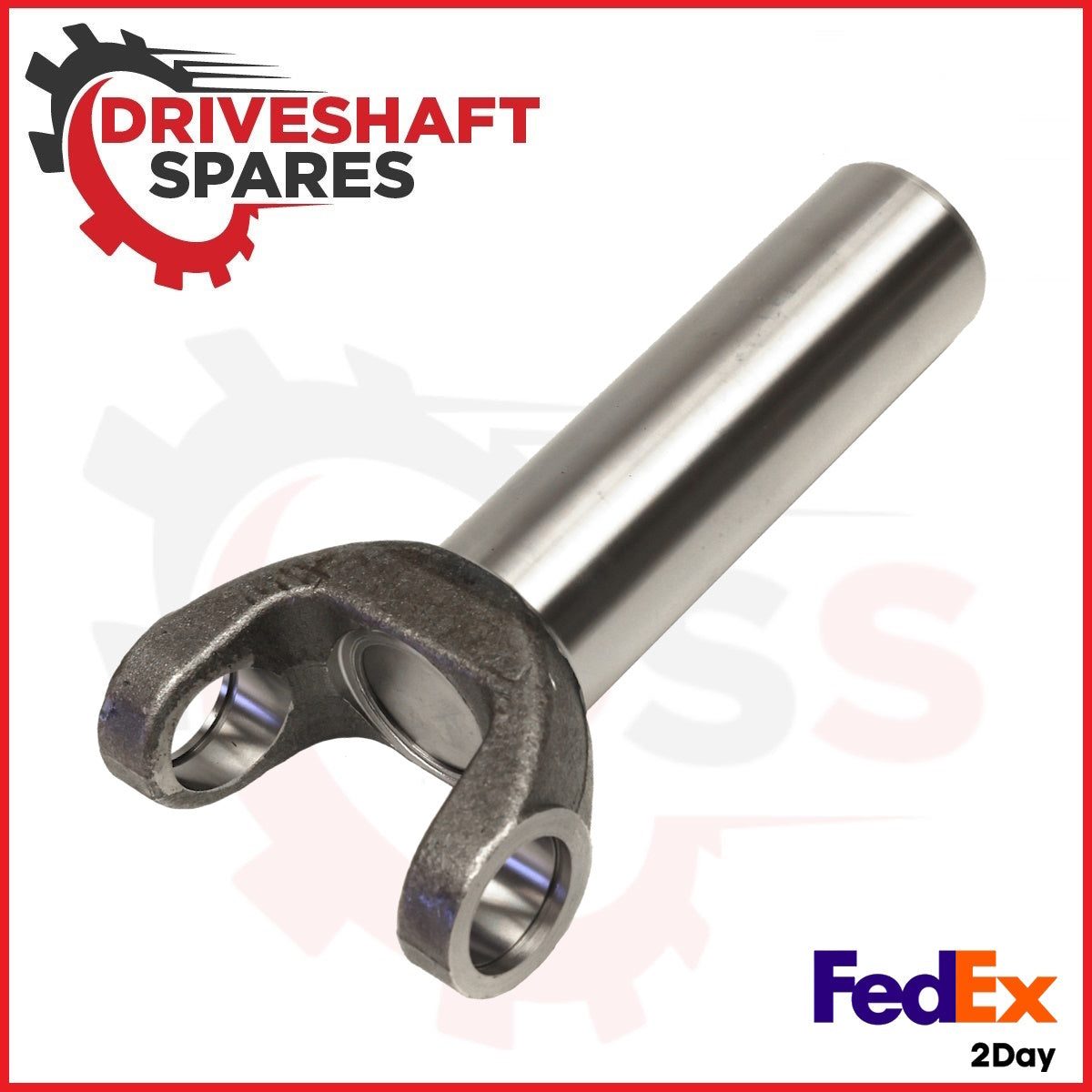

BRAND NEW Transmission Slip Yoke 3-3-5551X fits NP 246 261 263 GM TH400

Description

You are buying a High-Quality Aftermarket Transmission Slip Yoke that fits the following transmission cases:

• Applicable to Chevy and GMC 1350 Series Drive Lines used on 208 Transfer Cases and Other Transfer Cases with 1350 series 32 spline output shafts.
• Fit for 1998 – 2007 GM NP246, NP261 & NP263 Transfer Cases
• Compatible with SPICER Reference Numbers:  5-178X / 5-1350X / SPL30-1X
• Victory Performance Parts Reference Numbers: SY1350-4040
• Spicer Reference Number: 3-3-5551X

Transmission Yokes
Series	1350 (1.188 x 3.625)
OD	1.886
Splines	31/32
Length	7.940

• Technical Parameter:Series: 1350 Series
• Outside Yoke Dimension: 3.875 in
• Bearing Cap Diameter: 1.188 in
• To End Of Spline: 7.94 in
• Hub Diameter: 1.886 in
• Spline O.D. (STD): 1.378
• No. of Splines: 31/32
• Style: SR
• Counter Bore Diameter: 1.43 in
• Counter Bore Depth: 0.22 in
• Material: SteelInterchange Part Number:88964470
• 3-3-5551X
• 22944357
• GM40021420
• 22944357
