Description
Universal Joint Kit Assembly 5-170X + 1000 Yoke Ø0.875 bore with 0.25 keyway + yoke Ø0.750 bore with 0.25 keyway
. fits MudMotor, GoKart, ATV

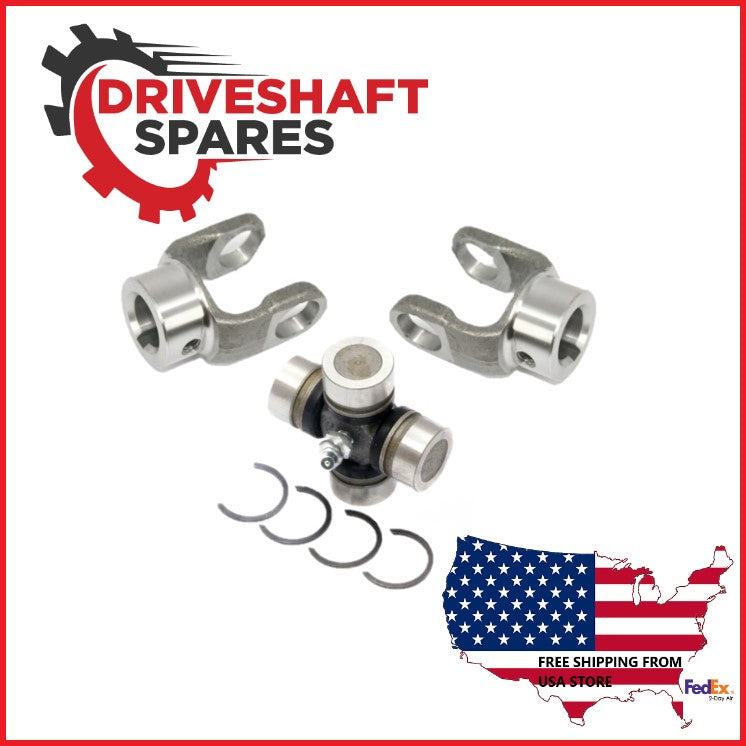

- NB: Here you are buying 2x end yokes and 1x forged steel aftermarket universal joint 5-170X to make up a kit as seen in the cover image.
- These kits are very popular with ATV’s, Large ride-on Lawn Mowers, Mud motors and any small projects where you need a driveshaft at an angle.
|
|||||||||||
| End Yokes | |
| Series | 1000 (0.938 x 1.500 I/C ) |
| (P) | 0.750 |
| (R) | 1.625 |
| (S) | 2.500 |
| (X) | 0.250 |
General Design Type Round Bore U-Joint Series 1000 Bore Diameter P 0.750 SAE Keyway Width X 0.250 Hub Diameter R 1.625 Universal Joint Retaining Width E 1.500 Universal Joint Bearing Diameter D 0.938 Length Thru Bore Q 1.030 Centerline of Joint to End of Hub S 2.500 Set Screw Thread 0.375 Keyway Location 3 Set Screw Location Clock position viewed at Hub End and Keyway at 12 W 9
Alternative part numbers for U-JOINT:
- CP170X
- 114-570
- 1-0170
- 2240231
- 4094089
- 612072
- 703325
- 2295607
- 2296407
- 2396407
- 2404877
- D-78
- 338
- 1501
- RL1000
- 5-110X
- 1-0172
