Description
Universal Joint Kit Assembly 5-170X +2x 1000 Yoke 10-4-123 Ø1.250″x 0.312 Keyway. fits MudMotor, GoKart, ATV

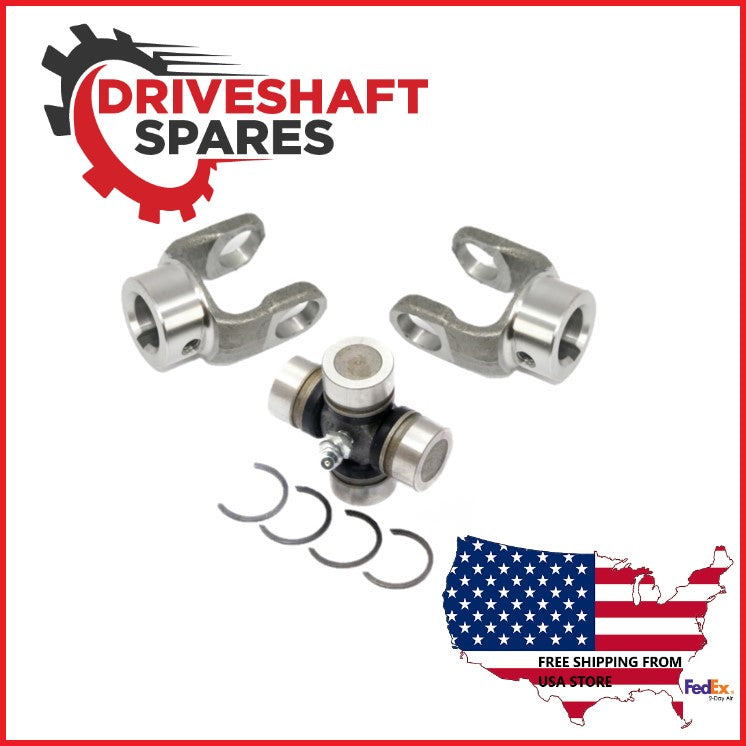

- NB: Here you are buying
2x end yokes and 1x forged steel aftermarket universal
joint 5-170X to make up a kit as seen in the cover image. -
These kits are very popular
with ATV’s, Large ride-on Lawn Mowers, Mud motors and any small projects
where you need a driveshaft at an angle.
| End Yokes | |
| Series | 1000 (0.938 x 1.500 I/C ) |
| (P) | 1.250 |
| (R) | 2.000 |
| (S) | 2.500 |
| (X) | 0.312 |
Brand: Driveshaft Parts To be used with universal joint 5-170X U-Joint Series 1000 Bore Diameter P 1.250 SAE Keyway Width X 0.312 Hub Diameter R 2.000 Universal Joint Retaining Width E 1.500 Universal Joint Bearing Diameter D 0.938 Length Thru Bore Q 1.030 Centerline of Joint to End of Hub S 2.500
| Imperial Universal Joints | |
| (D) | 0.938 |
| (F) | 1.500 |
| Type | 3 |
Alternative part numbers for U-JOINT:
- CP170X
- 114-570
- 1-0170
- 2240231
- 4094089
- 612072
- 703325
- 2295607
- 2296407
- 2396407
- 2404877
- D-78
- 338
- 1501
- RL1000
- 5-110X
- 1-0172
