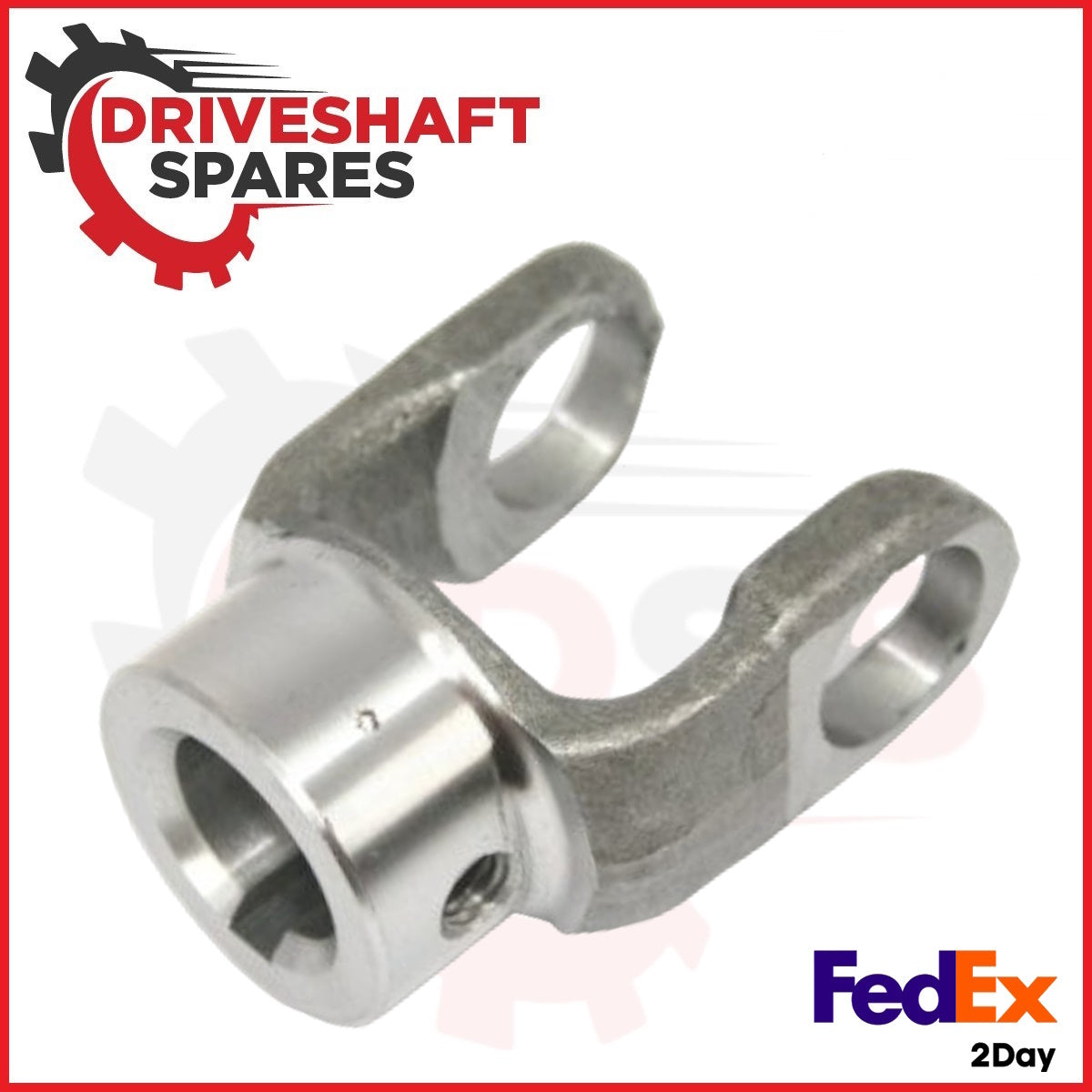

10-4-123 End Yoke – Round Bore 1000 series, Ø1.250 Bore w/0.312 keyway, Ø2.000

10-4-123 End Yoke - Round Bore 1000 series, Ø1.250 Bore w/0.312 keyway, Ø2.000

10-4-123 End Yoke - Round Bore 1000 series, Ø1.250 Bore w/0.312 keyway, Ø2.000 - Image 2

$36,00

143 in stock

Description

10-4-123 End Yoke – Round Bore 1000 series, Ø1.250 Bore w/0.312 keyway, Ø2.000 hub

These yokes are very popular with ATV’s, Large ride-on Lawn Mowers, Mud motors and any small projects where you need a driveshaft at an angle.

End Yokes
Series	1000 (0.938 x 1.500 I/C )
(P)	1.250
(R)	2.000
(S)	2.500
(X)	0.312

To be used with universal joint 5-170X U-Joint Series
1000 Bore Diameter P 1.250
SAE Keyway Width X 0.312
Hub Diameter R 2.000
Universal Joint Retaining Width E 1.500
Universal Joint Bearing Diameter D 0.938
Length Thru Bore Q 1.030
Centerline of Joint to End of Hub S 2.500

Additional information

Weight	1 kg

Reviews

There are no reviews yet.

Be the first to review “10-4-123 End Yoke – Round Bore 1000 series, Ø1.250 Bore w/0.312 keyway, Ø2.000”

cvj012b

Driveshaft CV Joint PLUNGING Kit 2005-2010 Ford Mustang 4.6L 3V Trans End

$84,00

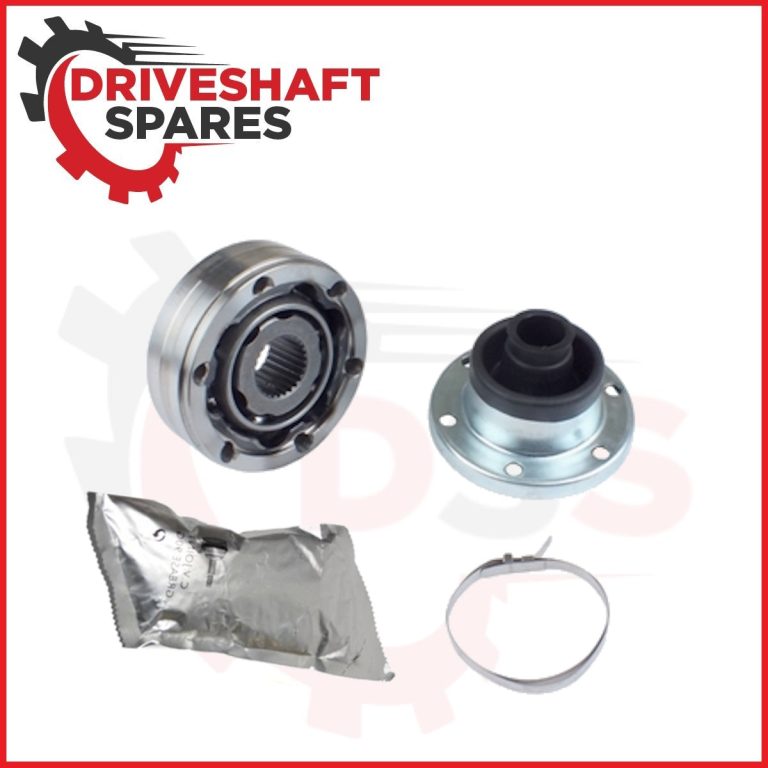

cvj035-2
