Description

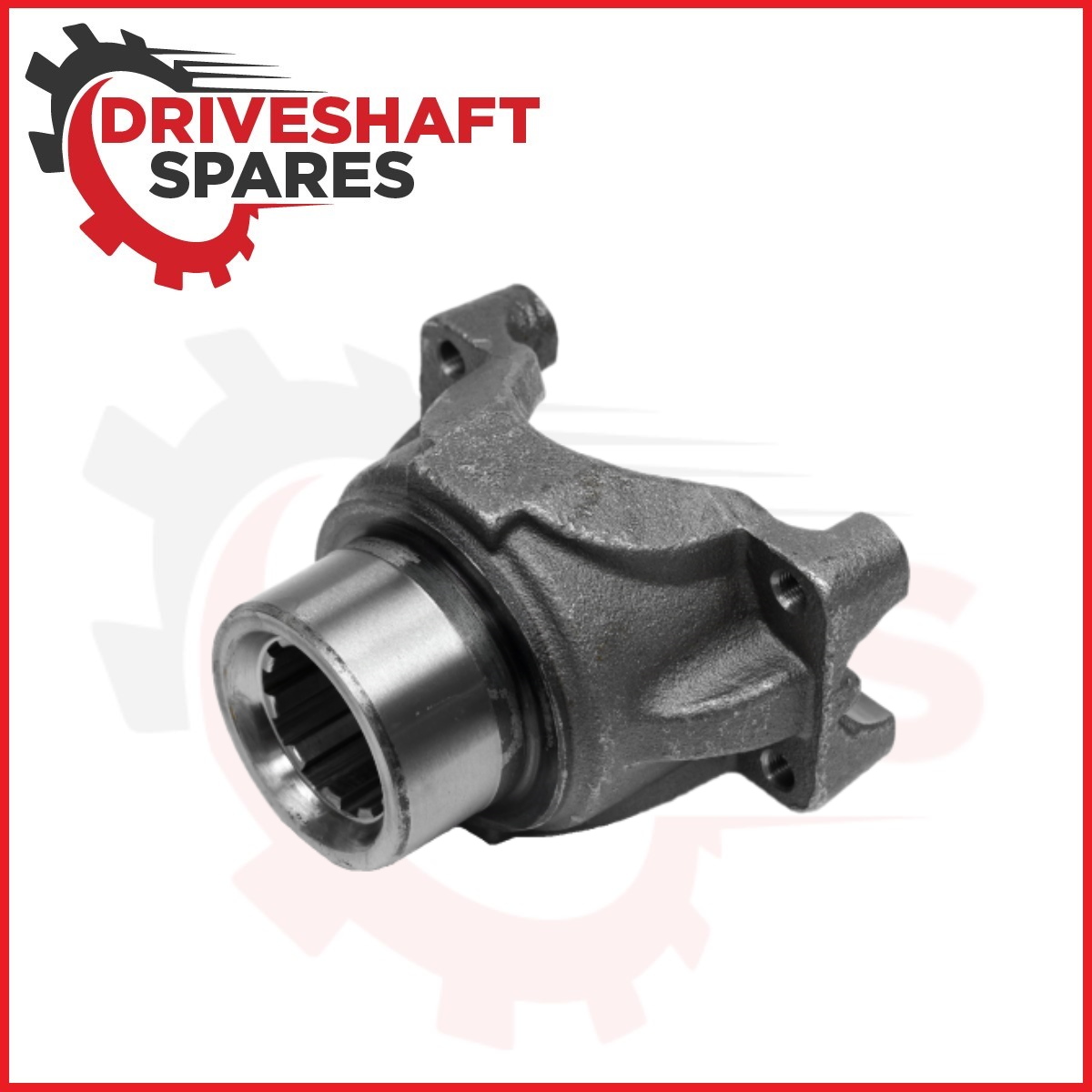

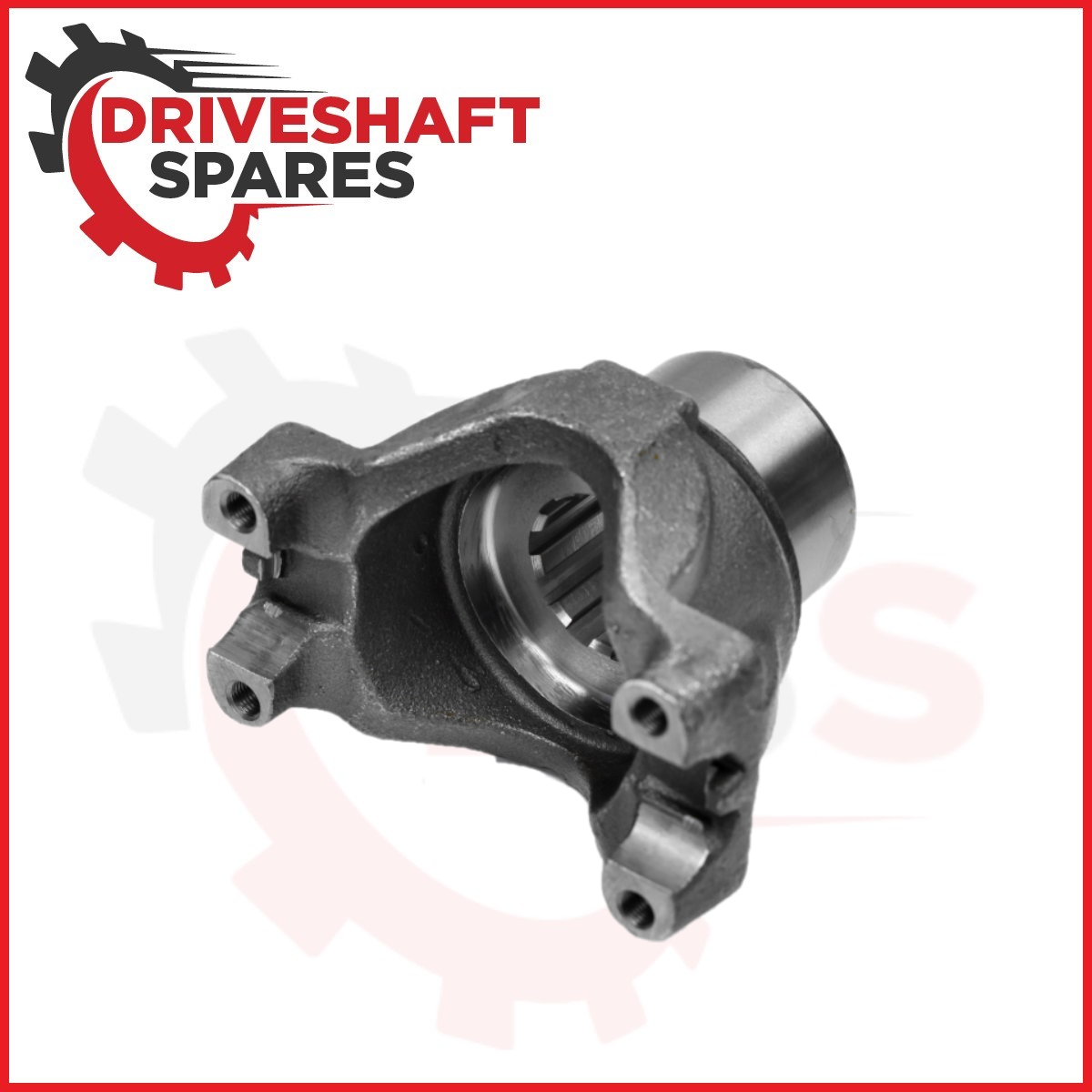

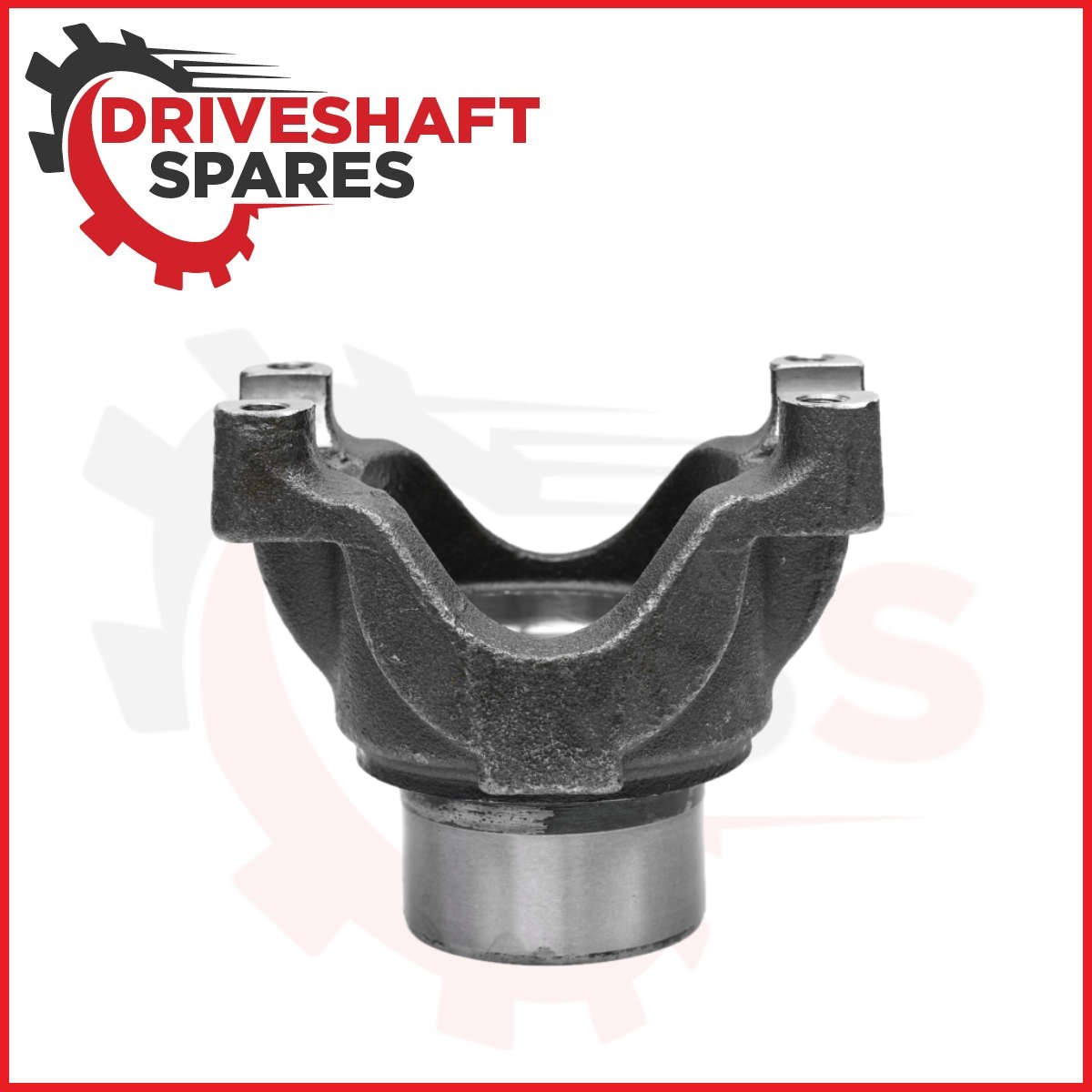

4-4-1901-1, 1550 Series End Yoke – Splined Bore Strap Style 1.750×10 spline.
Applications: CLARK – 1614, 1615, 1618, 1619, 16500, 16501, 16600, 16601, 16802, 16803, 17800, 17801, 1790-A, 1791-A, 1792, 1793, 1862, 1863, 18802, 1892, 1893, 1910, 1911, 19502, 19503, 2010, 2011, 20502, 20503, 2590, 2591, 2613, 2614, 2615, 2616, 2695, 2696, 6802, 6803, 7801, 8802, 8803, FABCO – SDA-16, SDA-18, SPICER/EATON – 16121, 17101, 17121, 18121, 30R, 32-MF, 32-MR, 340, 34R, 380, 38R, 42D, 42R, 50D
| End Yokes | |
| Series | 1550 (1.375 x 4.964) |
| Splines | 10 |
| Major Dia | 1.750 |
| (R) | 2.625 |
| (S) | 4.672 |
| (Q) | 2-234 |
| Type | 3 |
- U-Joint Series 1550
- Spline Major Diameter 1.750
- Spline Count 10.000
- Spline Pressure Angle Ground Hub Diameter R 2.625 Length Thru Bore Q 2.234 Centerline of Joint to End of Spline S 4.672 Universal Joint Retaining Width E 4.964 Universal Joint Bearing Diameter D 1.375 Counterbore Depth 0.000 Joint Angle 0.000 Style Strap
