Description

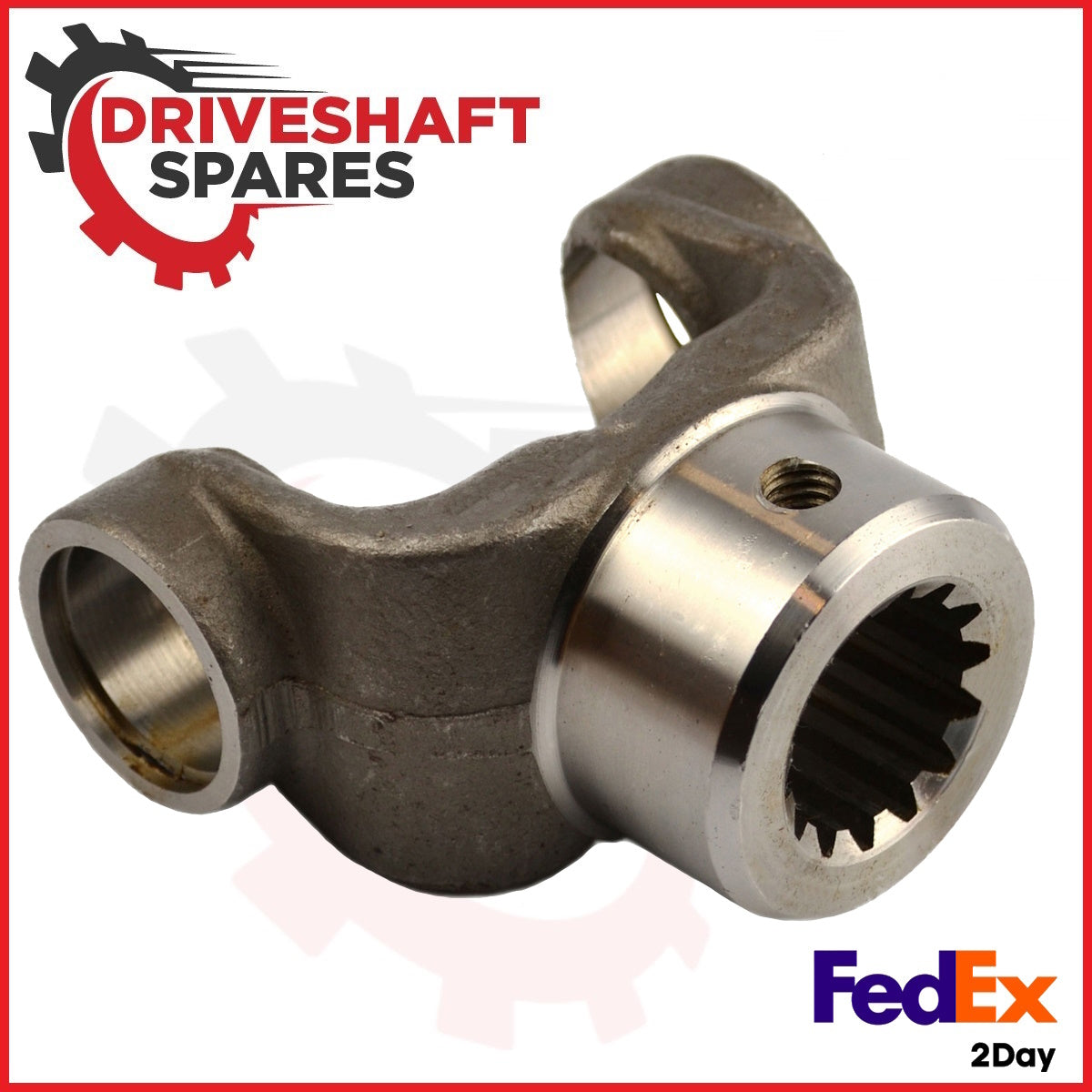

3-4-7401 End Yoke – Splined Bore 1350 Series, Snap Ring Style, Ø1.284×14 spline, Ø2.000 hub
| End Yokes | |
| Series | 1350 (1.188 x 3.625) |
| Splines | 14 |
| Major Dia | 1.284 |
| (R) | 2.000 |
| (S) | 2.688 |
| (Q) | 1.719 |
| Type | 2 |
- End Yoke – Splined Bore 1350 series, Snap Ring Style, 1.284×14 spline, 2.000 hub diameter
- U-Joint Series 1350
- Spline Major Diameter 1.284
- Spline Count 14.000
- Spline Type Involute Spline Pressure Angle
- Ground Hub Diameter R 2.000
- Length Thru Bore Q 1.719
- Centerline of Joint to End of Spline S 2.688
- Universal Joint Retaining Width E 3.875
- Universal Joint Bearing Diameter D 1.188
- Joint Angle 20.000 Style Snap Ring
