Universal Joint 5-170X +2x 1000 Yoke 10-4-93 1″x.250 Keyway for use in ATV MudMotor GoKart

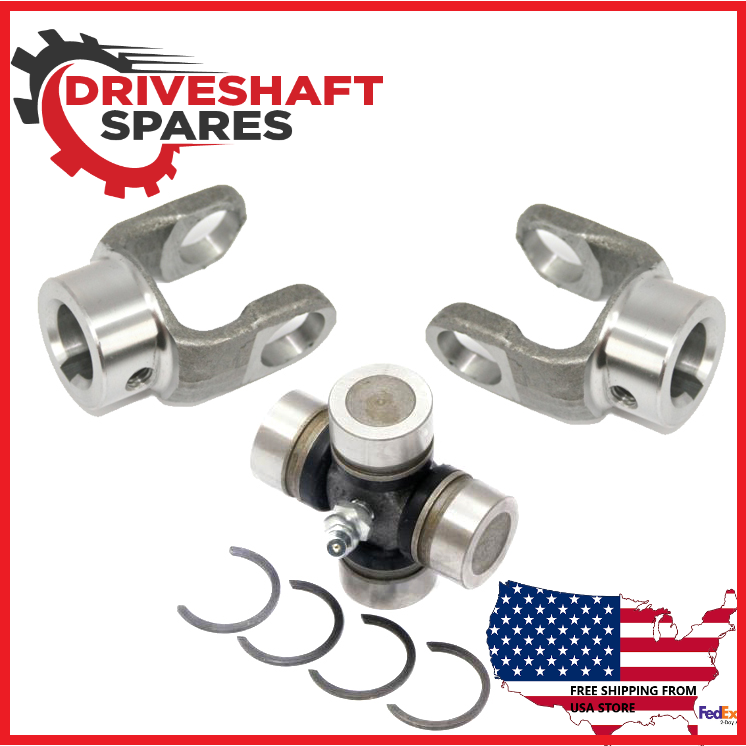

- YOU ARE BUYING 2X 10-4-93 End Yoke’s – Round Bore 1000 series + 1X 5-170X forged steel Universal Joint in kit form as seen in the cover image.
- These kits work very well with ATV’s, Large ride-on Lawn Mowers, Mud motors and any small projects that call for a driveshaft at an angle.
THIS SET INCLUDES THE FOLLOWING COMPONENTS:
2X: 10-4-93
| End Yokes | |
| Series | 1000 (0.938 x 1.500 I/C ) |
| (P) | 1.000 |
| (R) | 2.000 |
| (S) | 2.500 |
| (X) | 0.250 |
- End Yoke – Round Bore 1000 series, Ø1.000 Bore w/0.25 keyway, Ø2.000 hub diameter
1X: 5-170X
| Imperial Universal Joints | |
| (D) | 0.938 |
| (F) | 1.500 |
| Type | 3 |
- Alt part numbers: CP170X, 114-570, 1-0170, 2240231, 4094089, 612072, 703325, 2295607, 2296407, 2396407, 2404877, D-78, 338, 1501, RL1000, 5-110X, 1-0172
- FORGED UNIVERSAL JOINT 1″ ID BOTH ENDS WITH 1/4″ KEYWAYS TAPPED SET SCREW HOLES AND GREASE FITTING. 5″ LONG 2-1/2″ WIDE.
